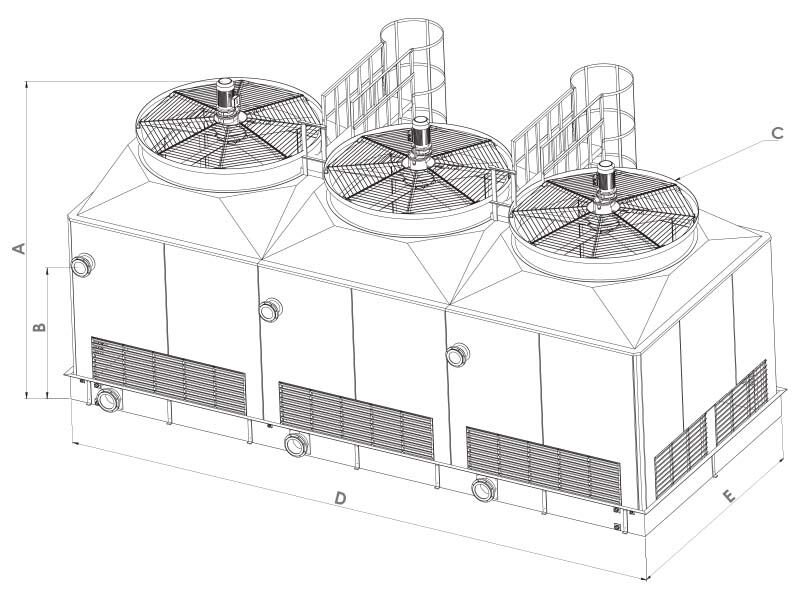

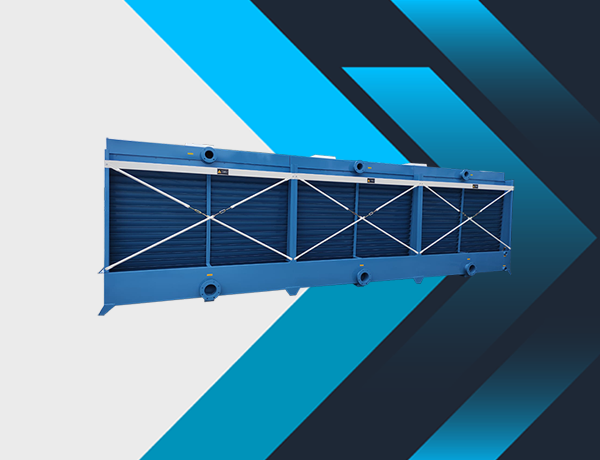

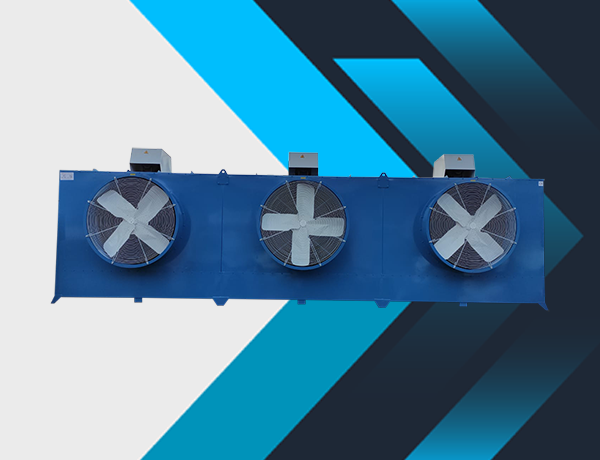

FP-ÜÇÜZ 33 Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 100,639 Watts Cooling Capacity 86,550 kCal/h Model FP - TRIPLE 33 Total Cooling Capacity 865,500 h - 1006.39 kW Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 173.1 m3/h Connection Dimensions Water inlet: 4" (3 Units) Water outlet: 4" (3 Units) Dimensions (W) 4480mm x (L) 2120mm x (H) 2320mm Loading Weight 1800 Kg Operating Weight 4.80 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 4 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 3.17x3 kW Protection Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 3 Fan Diameter Ø 1200 mm Air Flow Rate 113.602 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 1.7556 m3/h Drift Loss 0.007% Water Head 68.00 m3/h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable fan guard Tensioners Cast Iron Rope Tensioning Motor Hood Rain Protector, Full Protective Hood WARRANTY PERIOD Our products have CE and ISO certificates and are guaranteed for 1 year against manufacturing defects.
