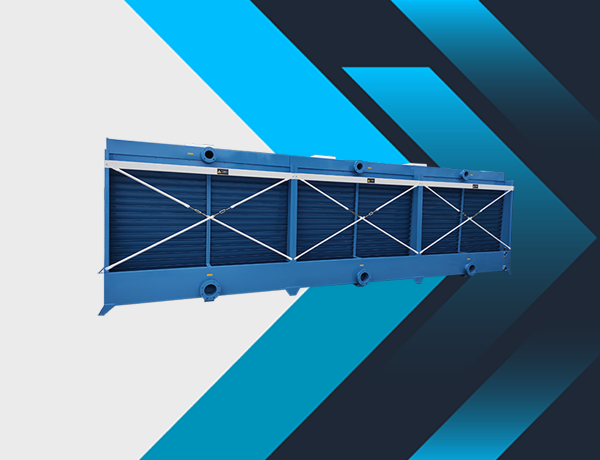

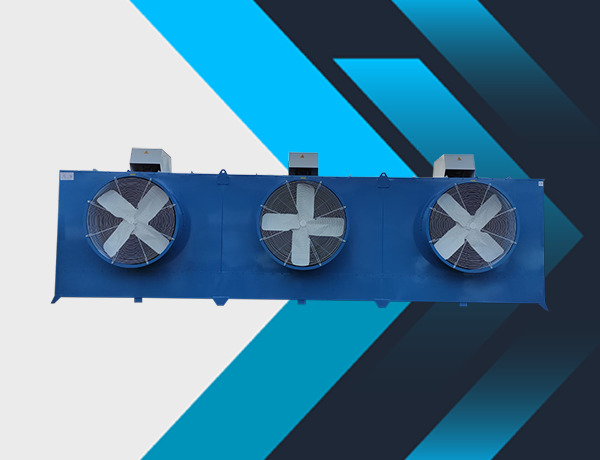

FP-ÜÇÜZ 35 Cross-Flow Axial Fan Water Cooling Tower

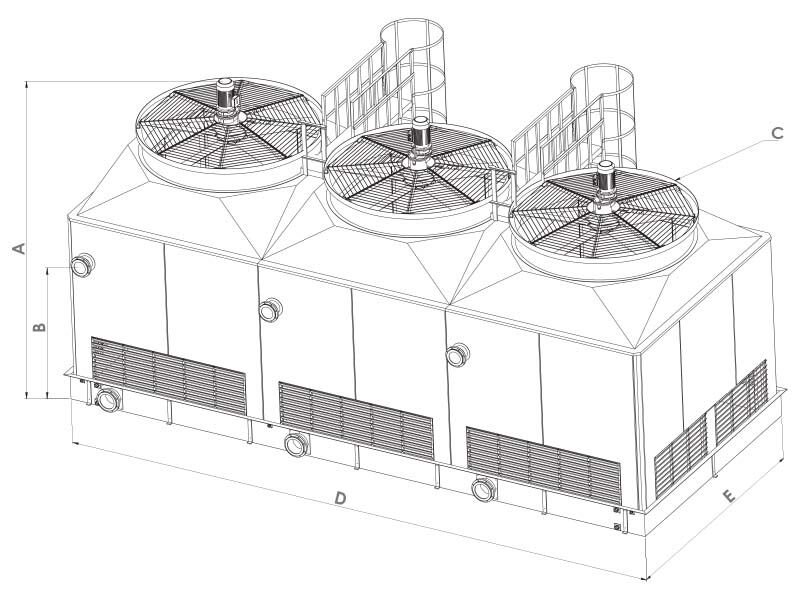

DESIGN INFORMATION Cooling Capacity 158,546 Watts Cooling Capacity 136,350 kCal/h Model FP - TRIPLE 35 Total Cooling Capacity 1,363,500 h - 1585.46 kW Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 272.7 m3/h Connection Dimensions Water inlet: 6" (3 Units) Water outlet: 6" (3 Units) Dimensions (W) 2440mm x (L) 5900mm x (H) 2430mm Loading Weight 2508 Kg Operating Weight 7.01 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 5.5 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 4.01x3 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 3 Fan Diameter Ø 1200 mm Air Flow Rate 134.9860 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 2.0862 m3/h Drift Loss 0.007% Water Head 48.47 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed, pitched, removable type Fan guard, Tensioners, Cast Rope Tensioner, Motor Cover, Rain Protector, Full Protective Cover. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
