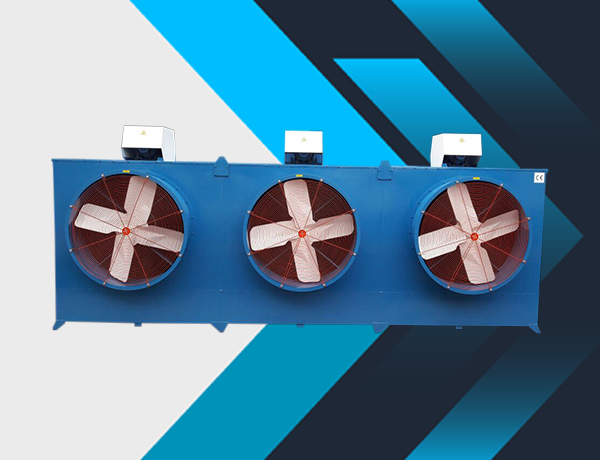

FP-Triple 33 Special One-Piece Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 100,639 Watts Cooling Capacity 86,550 kCal/h Model FP - TRIPLE 33 SPECIAL ONE-PIECE Total Cooling Capacity 865,500 h - 1006.39 Kw Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 173.1 m3/h Connection Dimensions Water inlet: 4" (3 Units) Water outlet: 4" (3 Units) Dimensions (W) 4480mm x (L) 2120mm x (H) 2750mm Loading Weight 2450 Kg Operating Weight 7.80 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 4 kW 1500 rpm (380 (Volt) (2 Units) Power Consumption 3.17x3 kW Protection Class Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 3 Fan Diameter Ø 1200 mm Air Flow Rate 113.602 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 1.7556 m3/h Drift Loss 0.007% Water Head 68.00 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamic pitched design Removable type fan guard, Tensioners, Cast Rope Tensioner, Motor Cover, Rain Protector, Fully Enclosed Cover, WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
