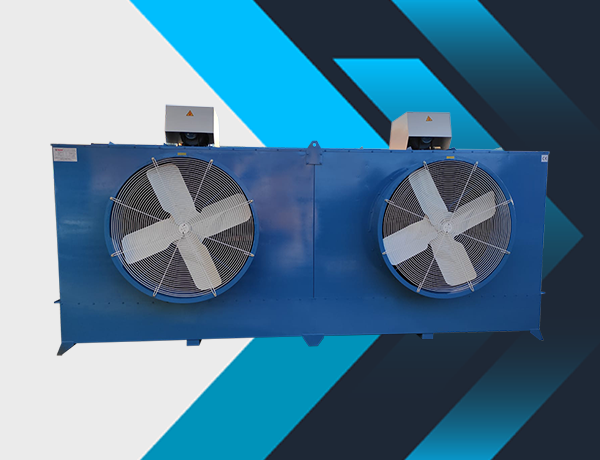

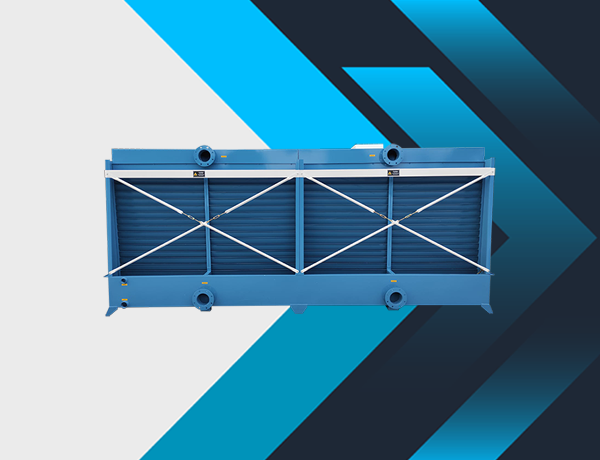

FP-TWIN 37 Cross-Flow Axial Fan Water Cooling Tower

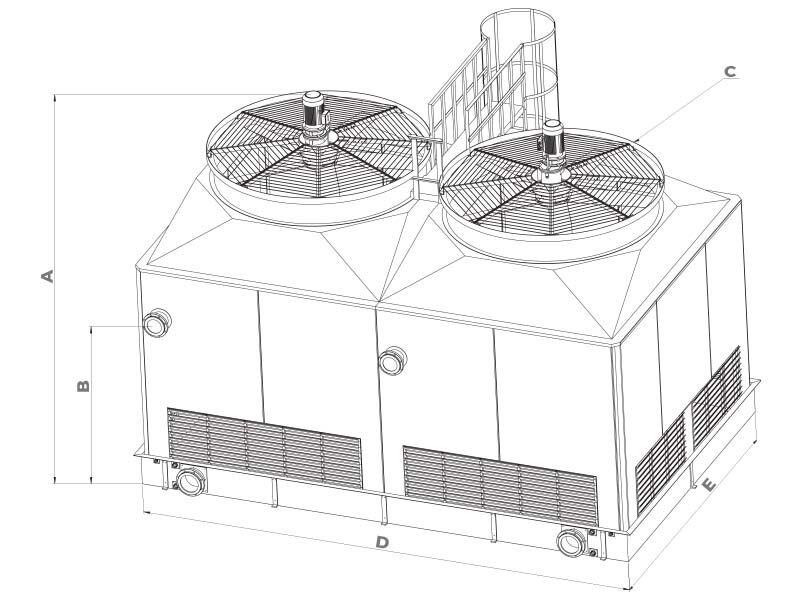

DESIGN INFORMATION Cooling Capacity 138,272 Watts Cooling Capacity 118,914 kCal/h Model FP - TWIN 37 Total Cooling Capacity 1,900,000 h - 1383.72 Kw Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 238 m3/h Connection Dimensions Water inlet: 6" (2 Units) Water outlet: 6" (2 Units) Dimensions (W) 4910mm x (L) 2440mm x (H) 2430mm Loading Weight 2320 Kg Operating Weight 6.32 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 5.5 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 4.1x2 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 2 Fan Diameter Ø 1200 mm Air Flow Rate 117.810 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 1.8207 m3/h Drift Loss 0.007% Water Head 50.10 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable type fan guard Tensioners, Cast Rope Tensioner, Motor Cover, Rain Protector, Full Protective Cover. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
