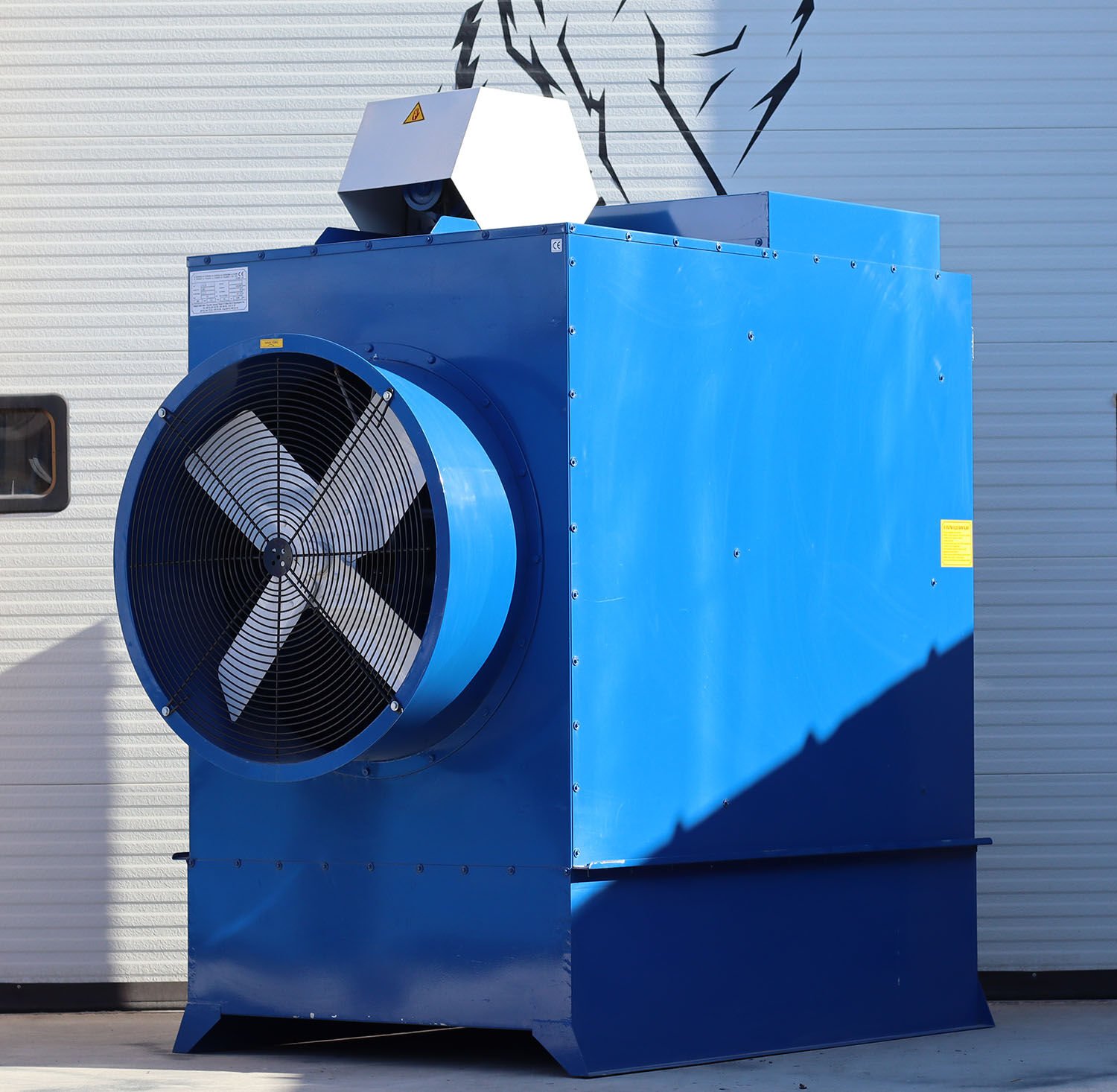

FP-35 Special One-Piece Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 52,848 Watts Cooling Capacity 45,449 kCal/h Model FP - 35 SPECIAL ONE-PIECE Total Cooling Capacity 454,500 kcal/h - 528.48 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 90.9 m3/h Connection Dimensions Water inlet: 6" Water outlet: 6" Dimensions (W) 2010mm x (L) 2440mm x (H) 2830mm Loading Weight 1200 KG Operating Weight 3.84 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 5.5 kW 1500 rpm (380 Volts) Power Consumption 4.10 kW Protection Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 1200 mm Air Flow Rate 44.995 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.6954 m3/h Drift Loss 0.007% Water Head 48.47 m3/h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamic pitched removable type fan guard Tensioners Cast Rope Tensioner Motor Cover Rain Protective, fully enclosed hat. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
