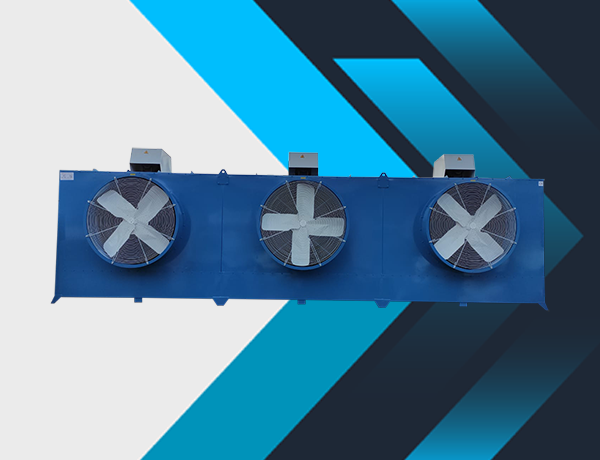

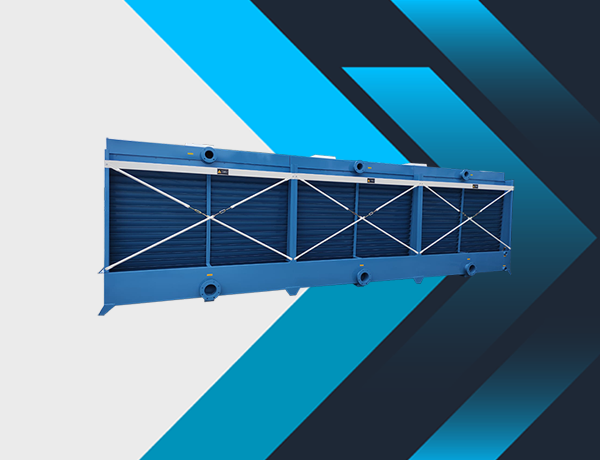

FP-Triple 37 Special One-Piece Cross-Flow Axial Fan Water Cooling Tower

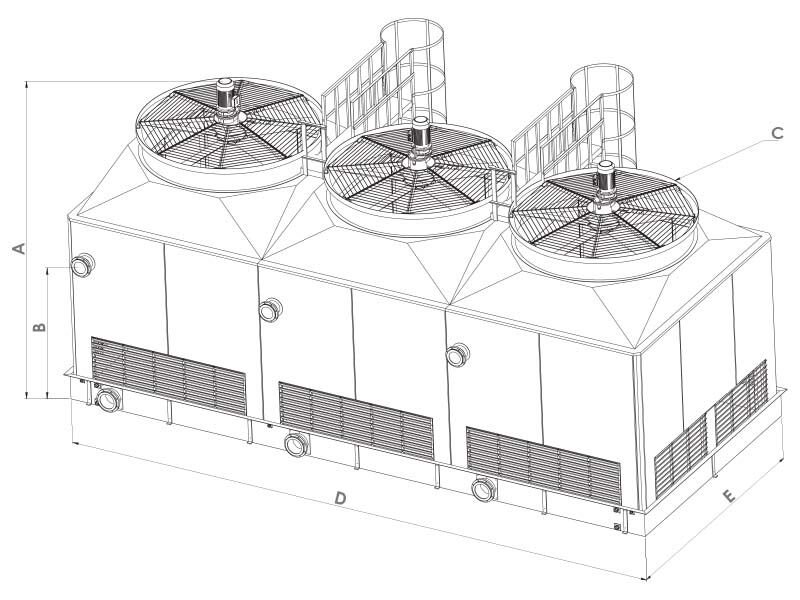

DESIGN INFORMATION Cooling Capacity 158,546 Watts Cooling Capacity 136,350 kCal/h Model FP - TRIPLE 37 SPECIAL ONE-PIECE Total Cooling Capacity 1,785,000 h - 2075.58 Kw Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 357 m3/h Connection Dimensions Water inlet: 6" (3 Units) Water outlet: 6" (3 Units) Dimensions (W) 7310mm x (L) 2430mm x (H) 2780mm Loading Weight 4800 Kg Operating Weight 15.48 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 5.5 kW 1500 rpm (380 Volt) (2 Units) Power Consumption 4.1x3 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 3 Fan Diameter Ø 1200 mm Air Flow Rate 176.715 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 2.7312 m3/h Drag Loss 0.007% Water Head 50.10 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamic design Pitch-type removable fan guard, Tensioners, Cast Rope Tensioner, Motor Cover, Rain Protector, Fully Enclosed Cover. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
