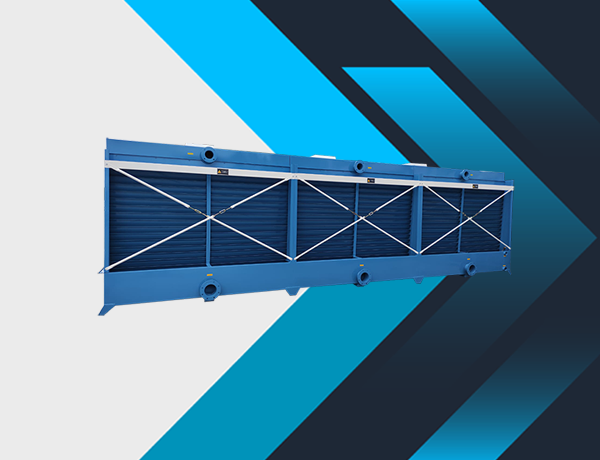

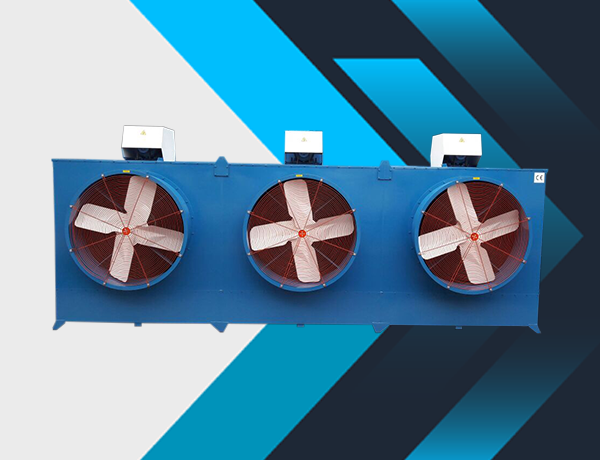

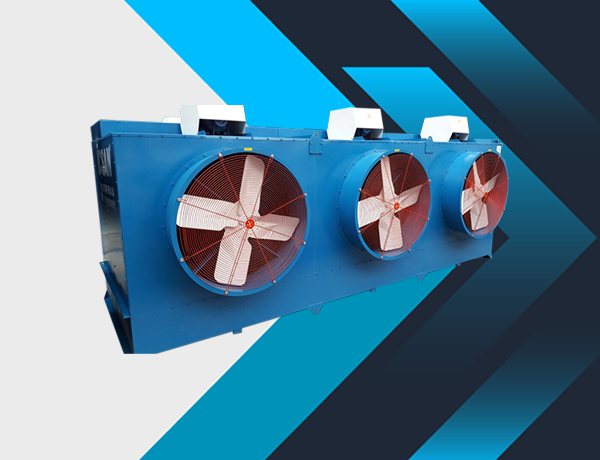

FP-ÜÇÜZ 31 Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 100,639 Watts Cooling Capacity 86,550 kCal/h Model FP- TRIPLE 31 Total Cooling Capacity 865,500 h - 1006.39 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 173.1 m3/h Connection Dimensions Water inlet: 4" (3 Units) Water outlet: 4" (3 Units) Dimensions (W) 2500mm x (L) 2450mm x (H) 2430mm Loading Weight 1800 Kg Operating Weight 4.80 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 2.2 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 1.71x3 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 3 Fan Diameter Ø 1200 mm Air Flow Rate 85.684 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 1.3242 m3/h Drift Loss 0.007% Water Head 68.00 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable type fan guard Tensioners, Cast Rope Tensioner, Motor Cover, Rain Protector, Full Protective Cover. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
