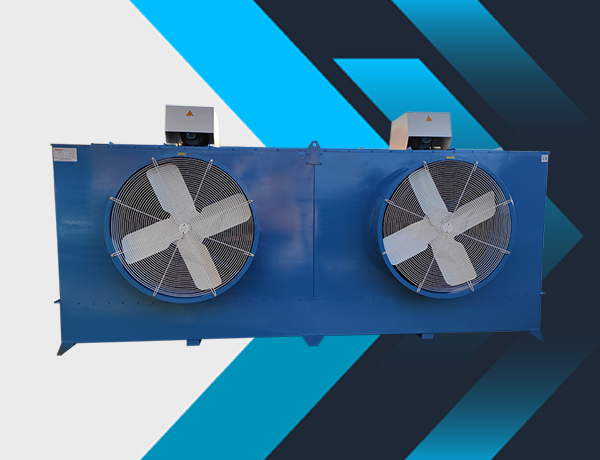

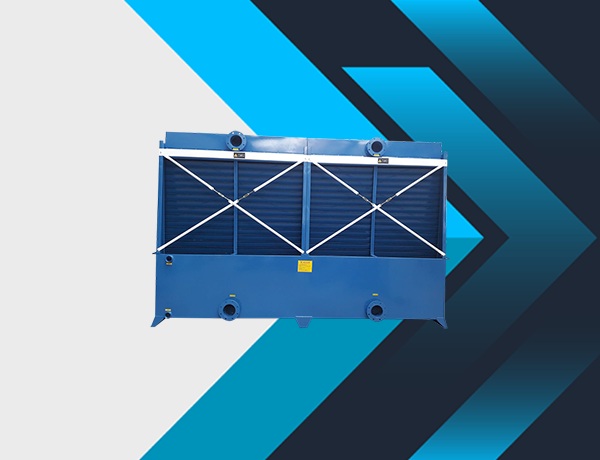

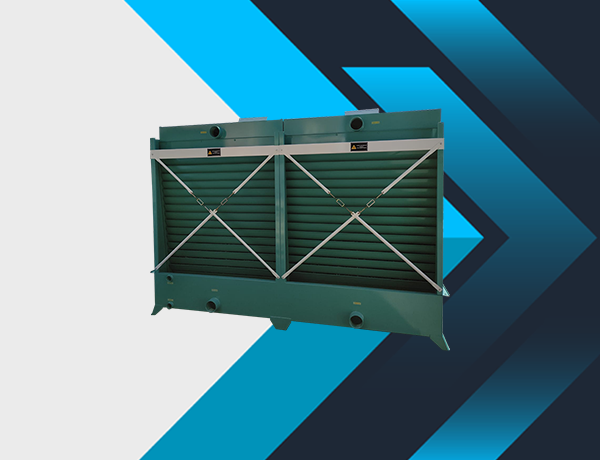

FP-TWIN 33 Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 88,953 Watts Cooling Capacity 76,500 kCal/h Model FP - TWIN 33 Total Cooling Capacity 765,000 kcal/h - 889.53 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 153 m3/h Connection Dimensions Water inlet: 4" (2 Units) Water outlet: 4" (2 Units) Dimensions (W) 3020mm x (L) 2160mm x (H) 2380mm Loading Weight 1206 Kg Operating Weight 3.20 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 4 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 3.17x2 kW Protection Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 2 Fan Diameter Ø 1200 mm Air Flow Rate 75.735 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 1.1704 m3/h Drift Loss 0.007% Water Head 68 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable fan guard Tensioners Cast Iron Rope Tensioning Motor Hood Rain Protector, Full Protective Hood WARRANTY PERIOD Our products have CE and ISO certificates and are guaranteed for 1 year against manufacturing defects.
