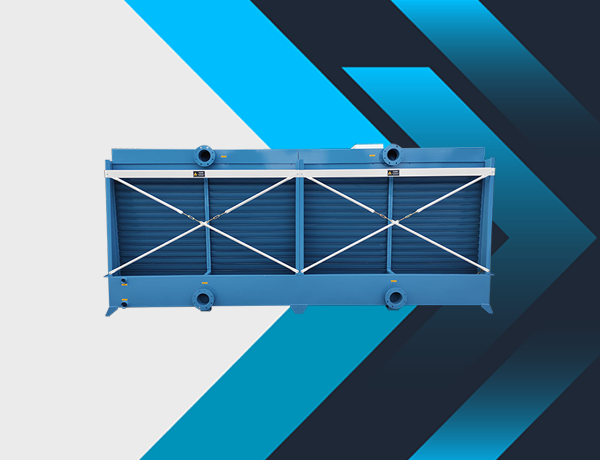

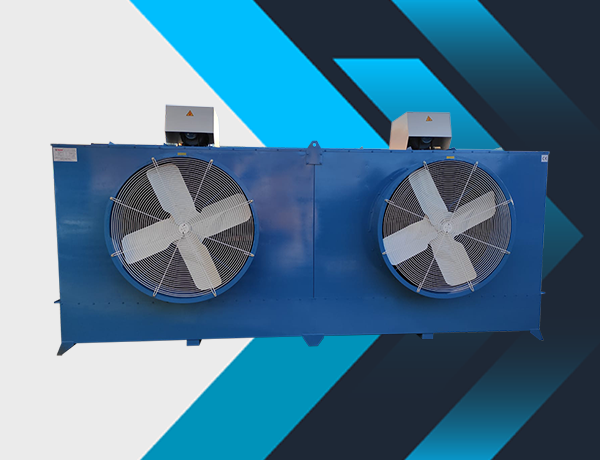

FP-TWIN 31 Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 671 Watts Cooling Capacity 577 kCal/h Model FP - TWIN 31 Total Cooling Capacity 577,000 kcal/h - 670.93 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 115.4 m3/h Connection Dimensions Water inlet: 4" (2 Units) Water outlet: 4" (2 Units) Dimensions (W) 3120mm x (L) 2160mm x (H) 2380mm Loading Weight 1200 Kg Operating Weight 3.20 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 2.2 kW 1500 rpm (380 Volts) (2 Units) Power Consumption 1.71x2 kW Protection Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 2 Fan Diameter Ø 1200 mm Air Flow Rate 57.123 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.8828 m3/h Drag Loss 0.007% Water Head 68.00 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable type fan guard Tensioners Cast Iron Rope Tensioning Motor Hood, Rain Protector, Full Protective Hood. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
