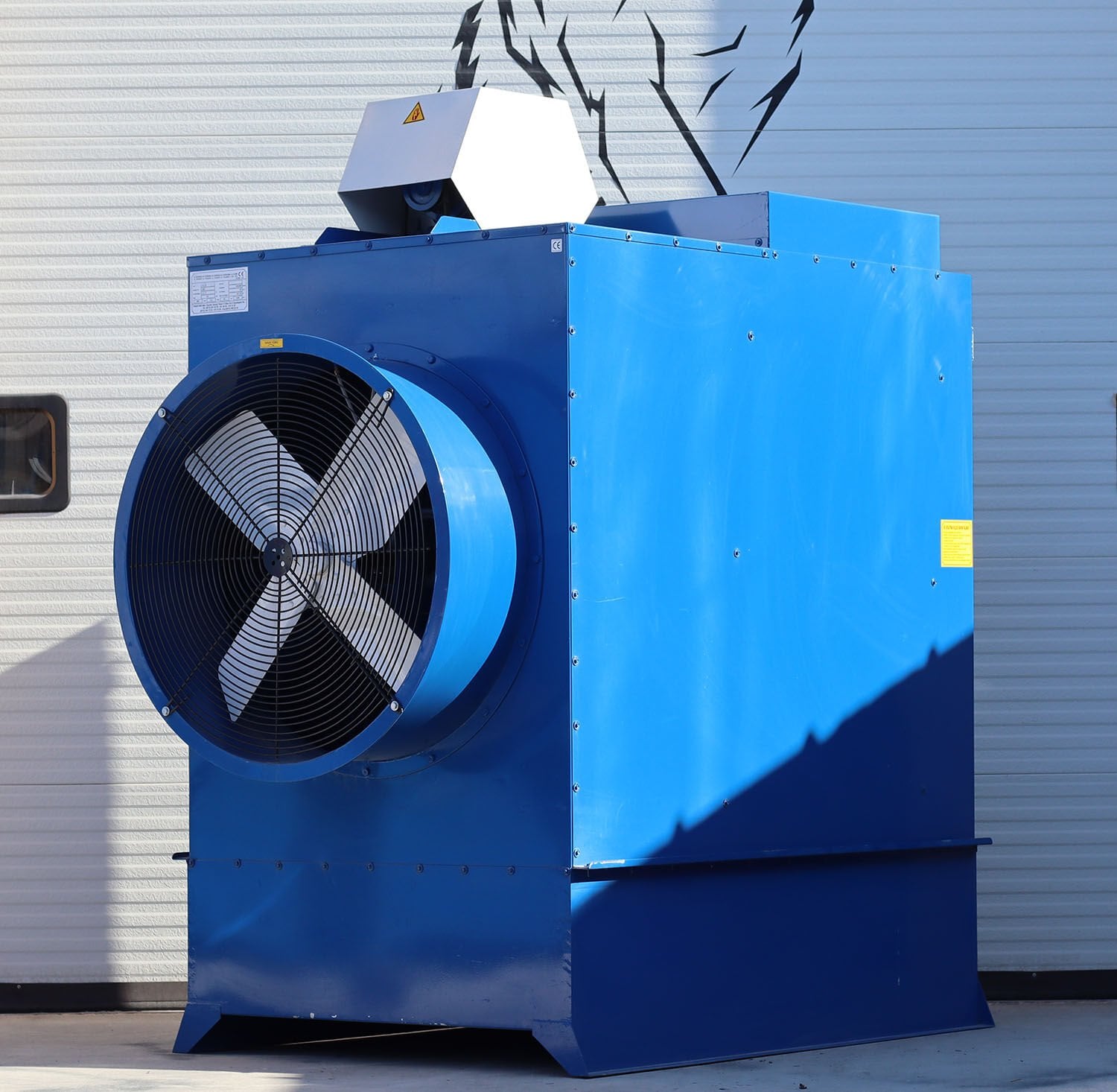

FP-33 Special One-Piece Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 44,476 Watts Cooling Capacity 38,249 kCal/h Model FP - 33 SPECIAL ONE-PIECE Total Cooling Capacity 382,500 kcal/h - 444.76 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 76.5 m3/h Connection Dimensions Water inlet: 4" Water outlet: 4" Dimensions (W) 1560mm x (L) 2160mm x (H) 2800mm Loading Weight 603 KG Operating Weight 2.60 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 4 kW 1500 rpm (380 Volts) Power Consumption 3.17 kW Protection Class F Class Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 1200 mm Air Flow Rate 37.867 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.5852 m3/h Drift Loss 0.007% Water Head 68.00 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamic pitched removable type fan guard Tensioners Cast Rope Tensioner Motor Cover Rain Protective, fully enclosed hat. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
