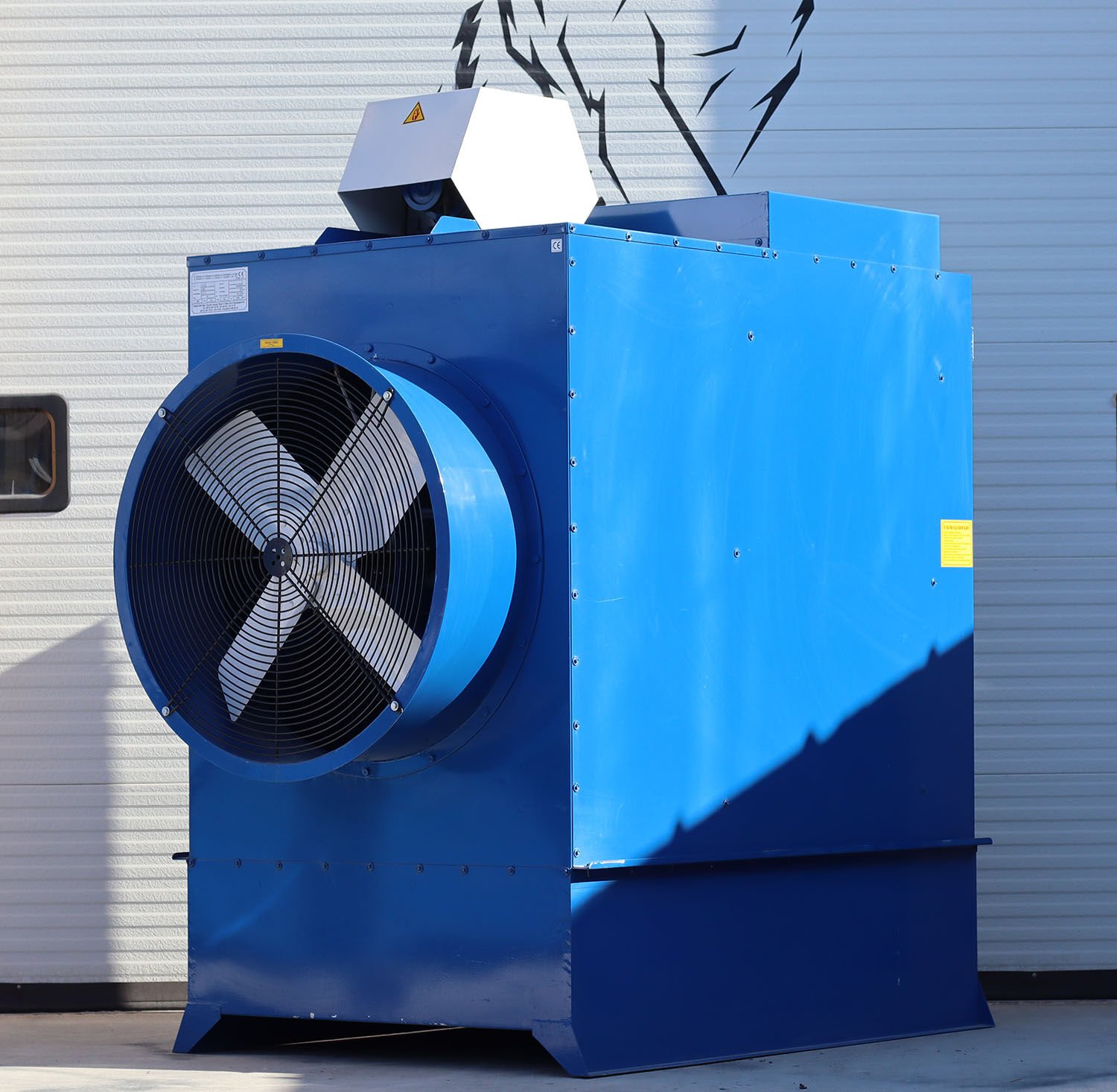

FP-33 Cross-Flow Axial Fan Water Cooling Tower

SPECIFICATIONS Cooling Capacity 44,476 Watts Cooling Capacity 38,249 kCal/h Model FP - 33 Total Cooling Capacity 382,500 kcal/h - 444.76 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 76.5 m3/h Connection Dimensions Water inlet: 4" Water outlet: 4" Dimensions (W) 1560mm x (L) 2160mm x (H) 2380mm Loading Weight 603 KG Operating Weight 1.60 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 4 kW 1500 rpm (380 Volts) Power Consumption 3.17 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 1200 mm Air Flow Rate 37.8167 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.5852 m3/h Drag Loss 0.007% Water Head 68.00 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamic pitched removable type fan guard Tensioners Cast Rope Tensioner Motor Cover Rain guard, fully enclosed cover WARRANTY PERIOD Our products have CE and ISO certificates and are guaranteed for 1 year against manufacturing defects.
