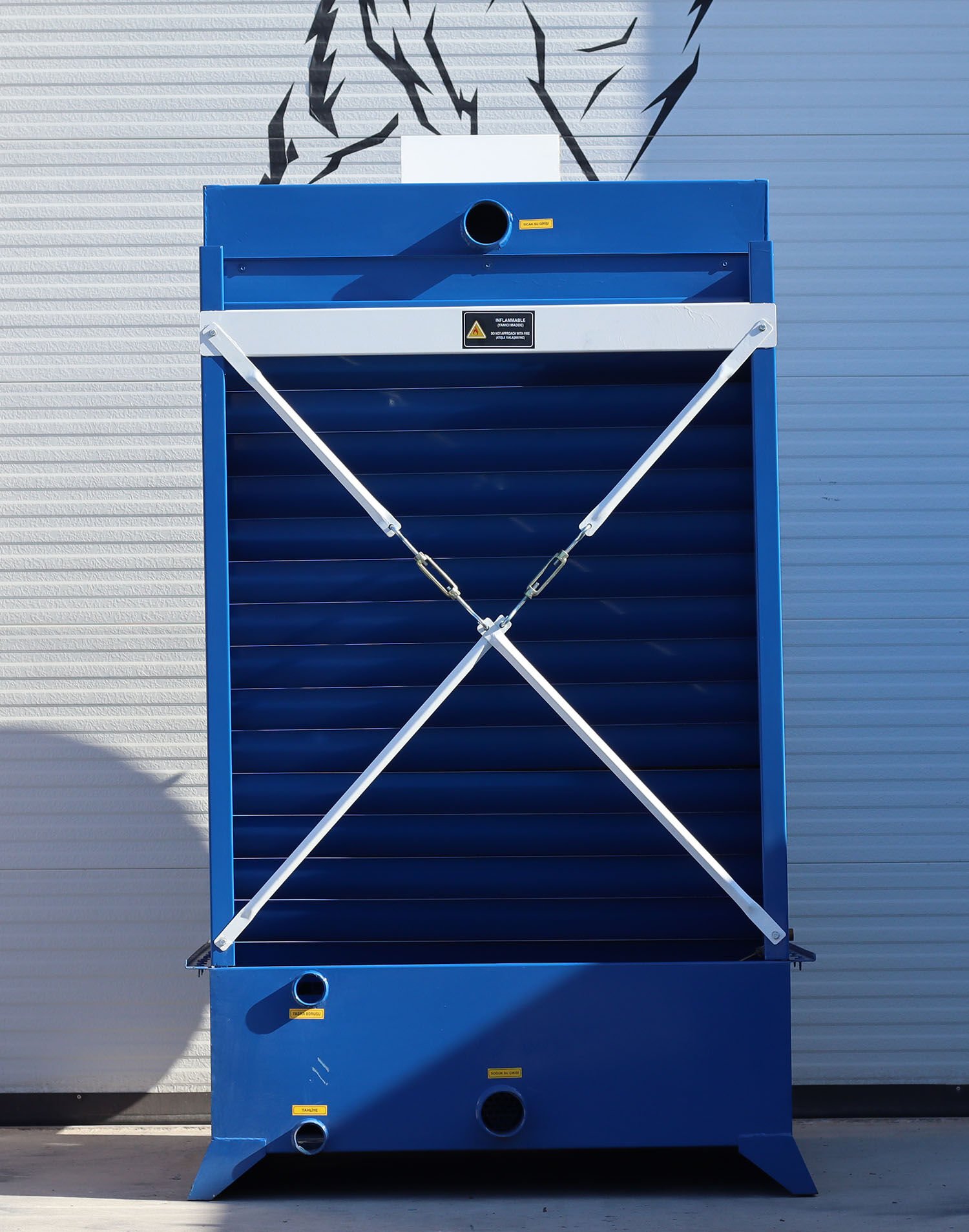

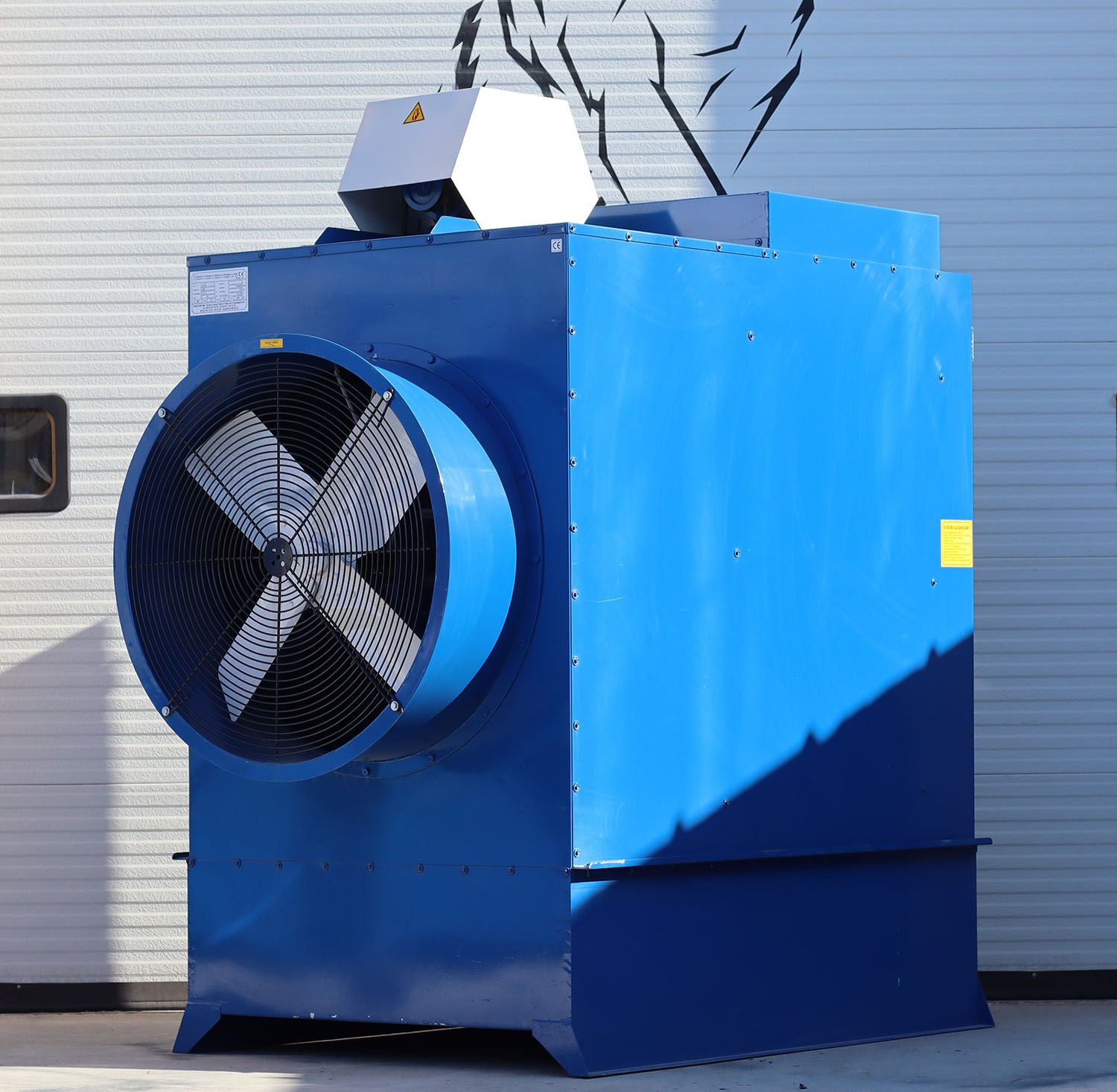

FP-31 Special One-Piece Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 33,546 Watts Cooling Capacity 28,850 kCal/h Model FP - 31 SPECIAL ONE-PIECE Total Cooling Capacity 288,500 kcal/h - 335.46 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 57.7 m3/h Connection Dimensions Water inlet: 4" Water outlet: 4" Dimensions (W) 1560mm x (L) 2160mm x (H) 2800mm Loading Weight 800 KG Operating Weight 2.60 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 2.2 kW 1500 rpm (380 Volts) Power Consumption 1.71 kW Protection Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 1200 mm Air Flow Rate 28.561 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.4414 m3/h Drift Loss 0.007% Water Head 51.28 t/m2.h Total Pressure Loss 4.2 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable type fan guard Tensioners Cast Rope Tensioner Motor The hood is a rainproof, fully protective hood. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
