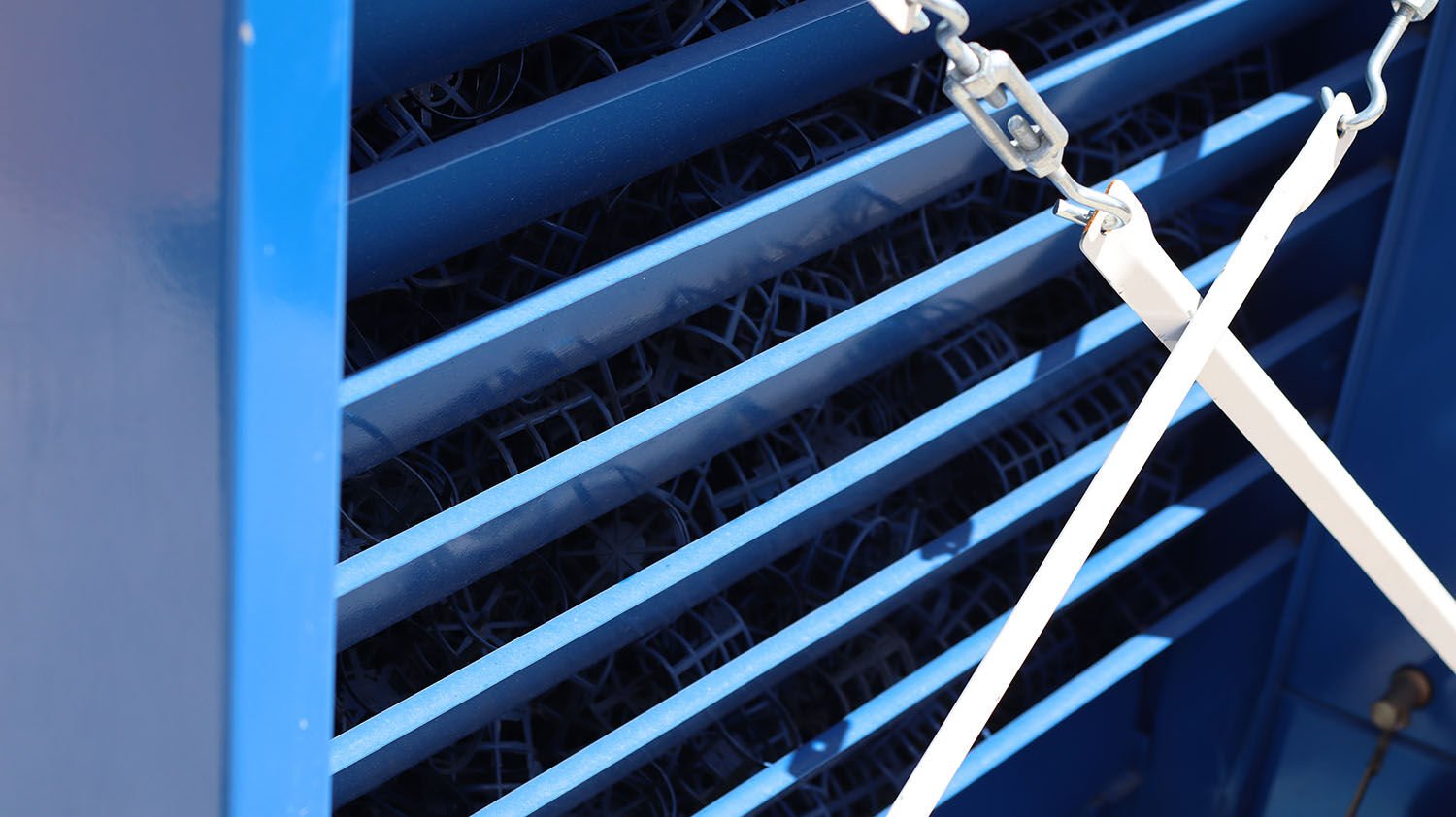

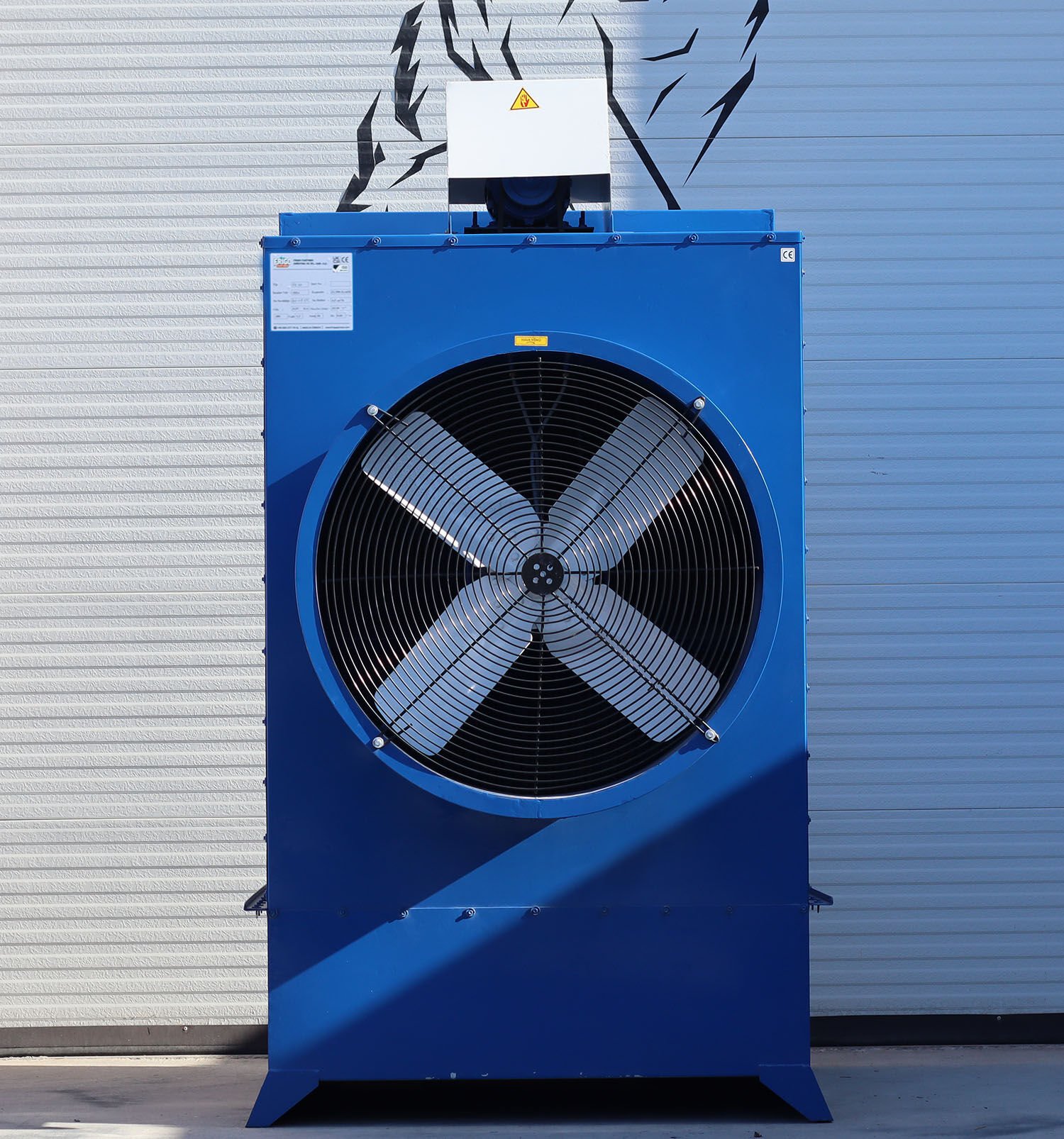

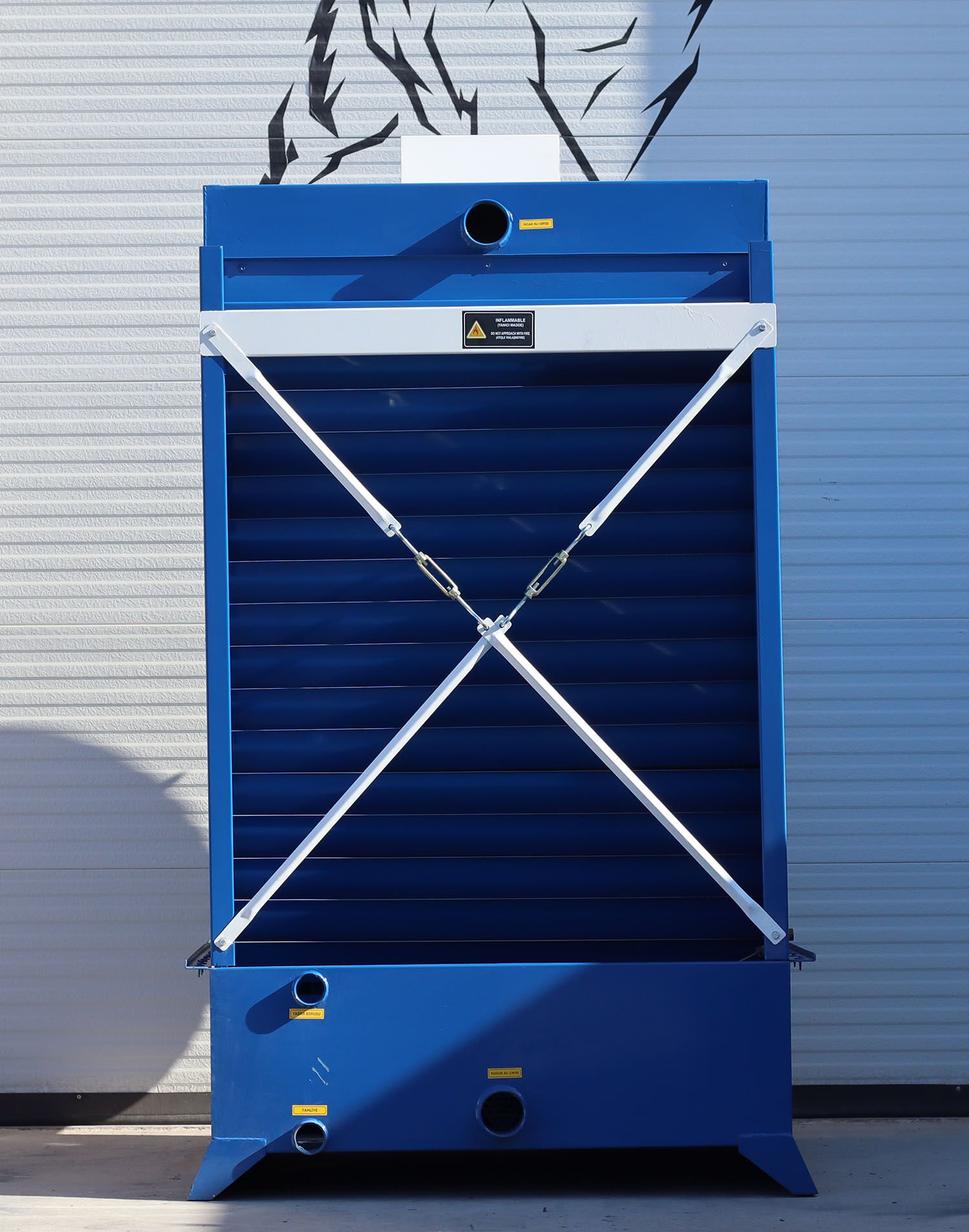

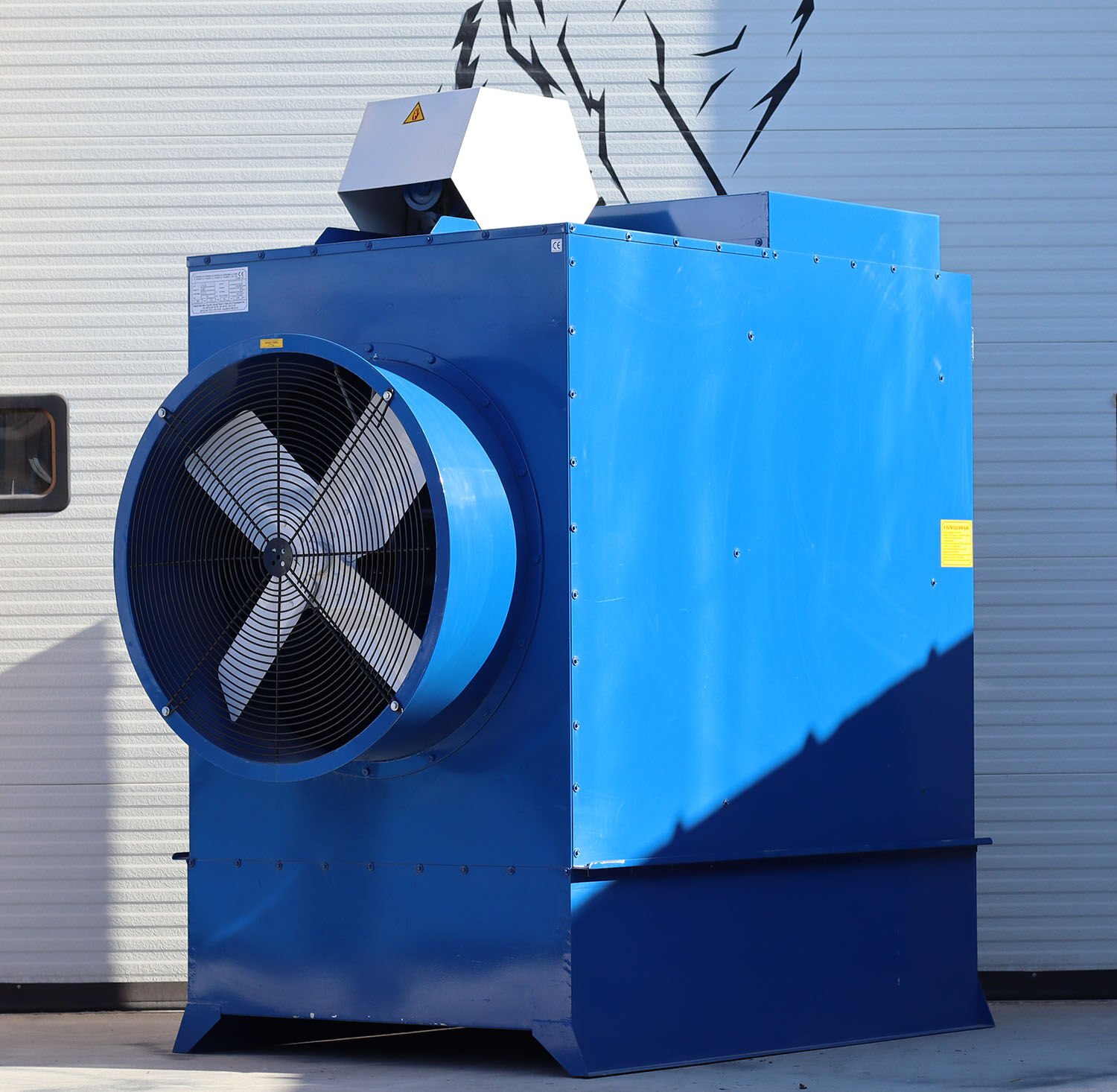

DESIGN INFORMATION Cooling Capacity 26,162 Watts Cooling Capacity 22,499 kCal/h Model FP - 29 SPECIAL ONE-PIECE Total Cooling Capacity 225,000 kcal/h - 261.62 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 45 m3/h Connection Dimensions Water inlet: 3" Water outlet: 3" Dimensions (W) 1270mm x (L) 2160mm x (H) 2810mm Loading Weight 650 KG Operating Weight 1.99 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 2.2 kW 1500 rpm (380 Volts) Power Consumption 1.71 kW Protection Class F Class Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 900 mm Air Flow Rate 22.275 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.3443 m3/h Drag Loss 0.007% Water Head 49.65 t/m2.h Total Pressure Loss 4 mmss Tower Accessories Fan Guard Aerodynamic pitched removable type fan guard Tensioners Cast Rope Tensioner Motor Cover Rain guard, full Protective cap WARRANTY PERIOD Our products have CE and ISO certificates and are covered against manufacturing defects for 1 year.
