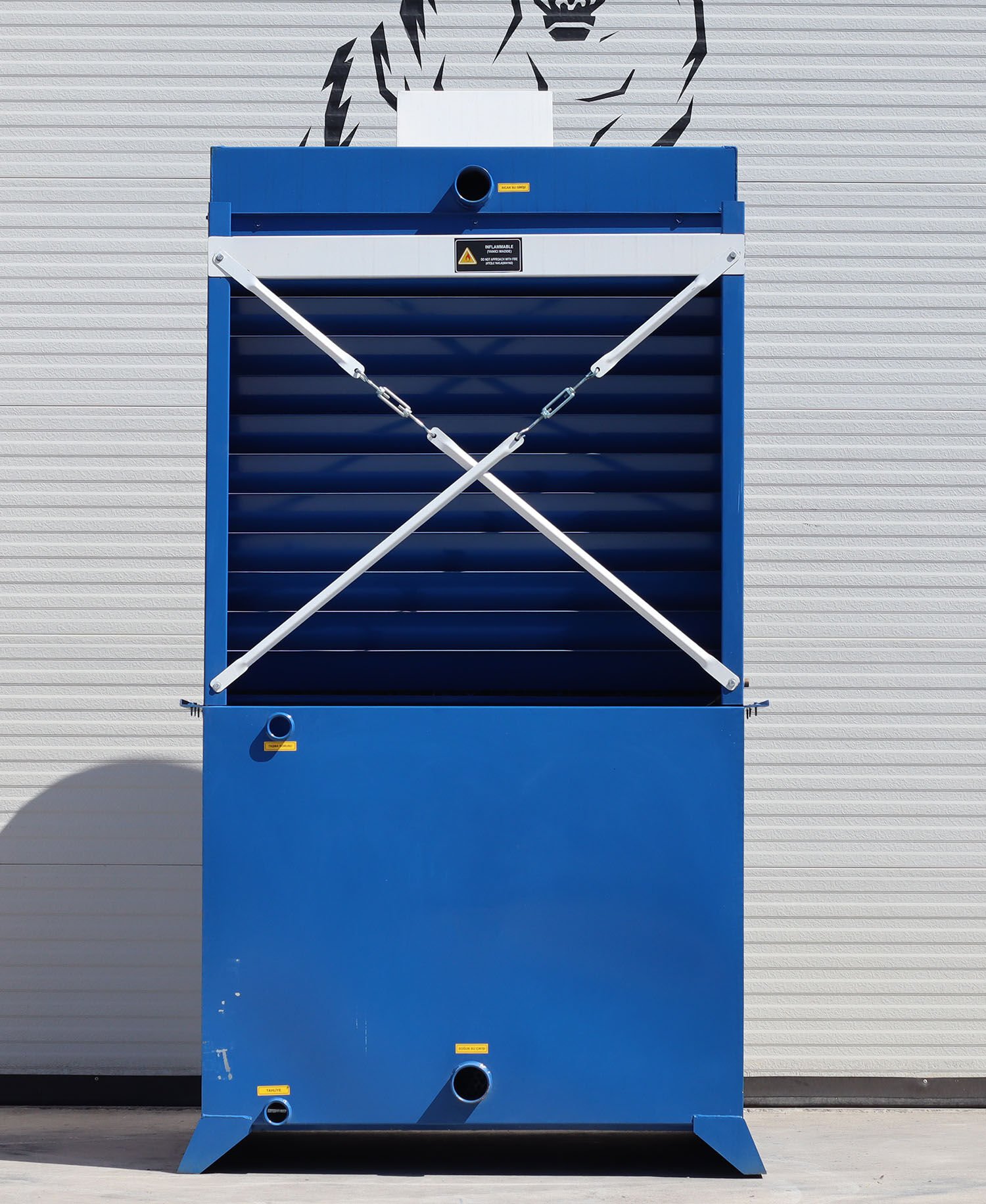

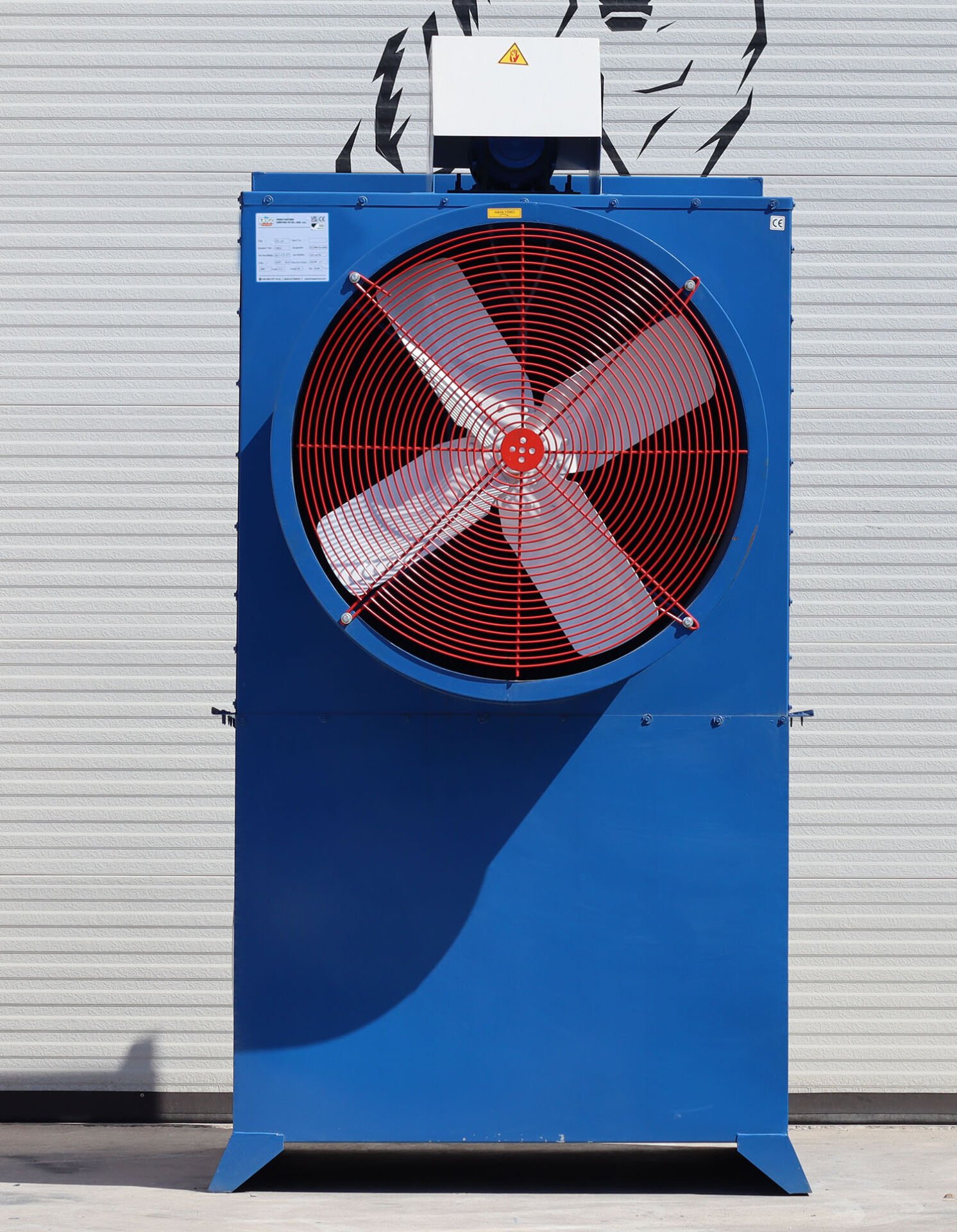

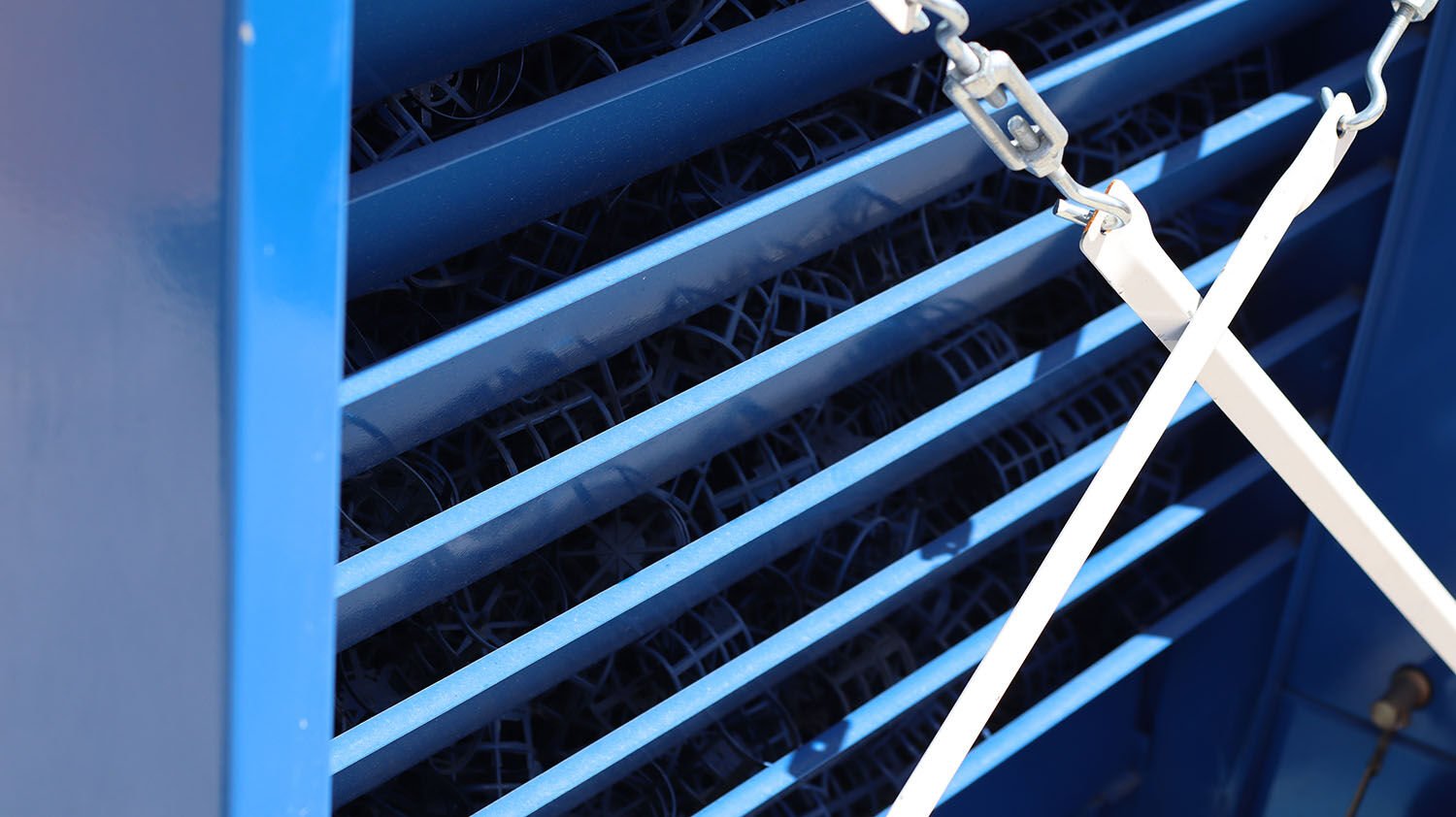

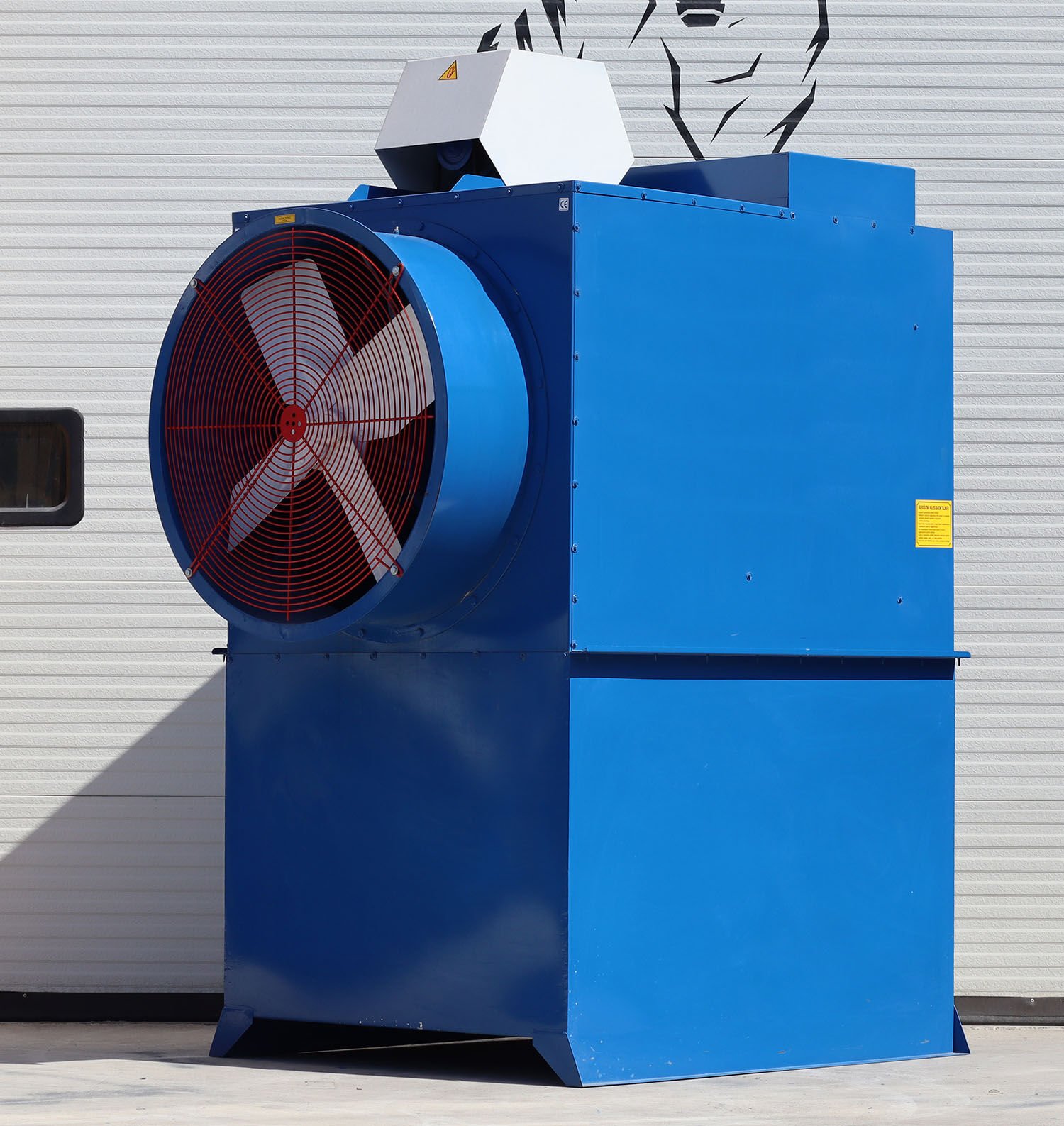

DESIGN INFORMATION Cooling Capacity 17,267 Watts Cooling Capacity 14,850 kCal/h Model FP - 25 SPECIAL ONE-PIECE Total Cooling Capacity 148,500 kcal/h - 172.67 kW Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 29.7 m3/h Connection Dimensions Water inlet: 2 1/2" Water outlet: 2 1/2" Dimensions (W) 1270mm x (L) 1965mm x (H) 2400mm Loading Weight 500 KG Operating Weight 1.85 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 2.2 kW 1500 rpm (380 Volts) Consumed Power 1.71 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 900 mm Air Flow Rate 14.701 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.2272 m3/h Drag Loss 0.007% Water Head 49.15 t/m2.h Total Pressure Loss 4 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable fan guard Tensioners Cast Iron Rope Stretchable Motorcycle Hood, Rain Protector, Full Protective Hood. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
