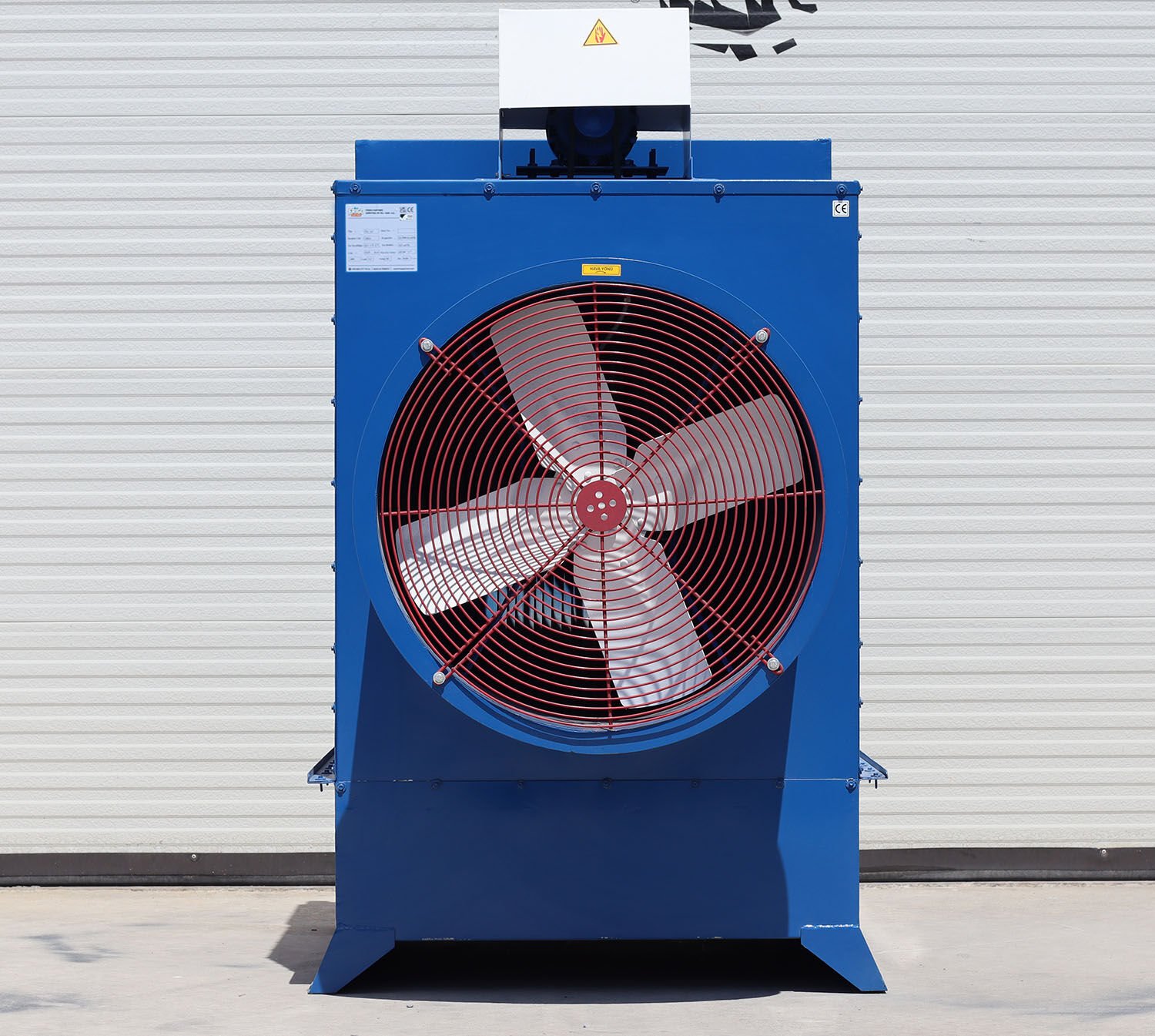

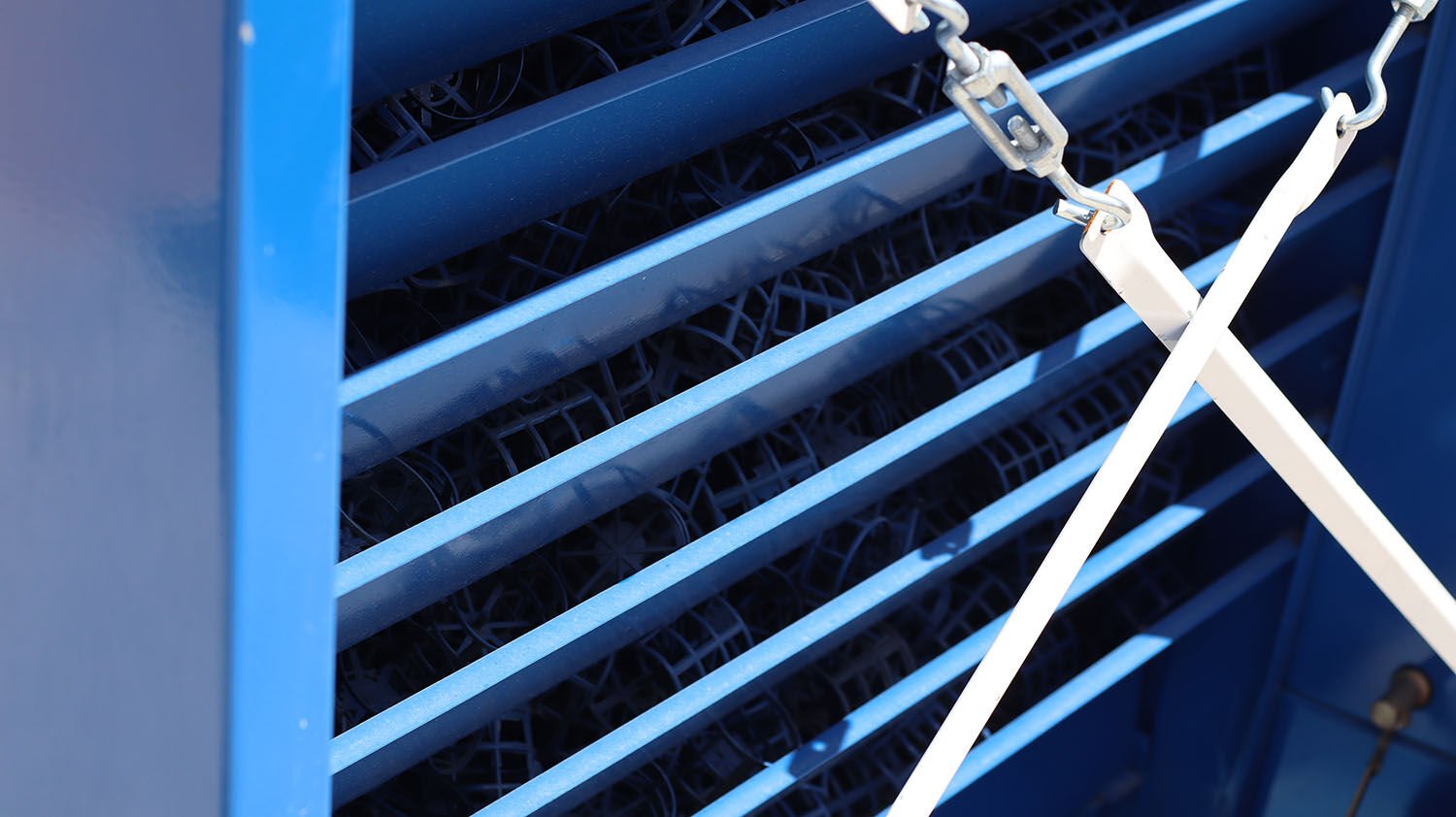

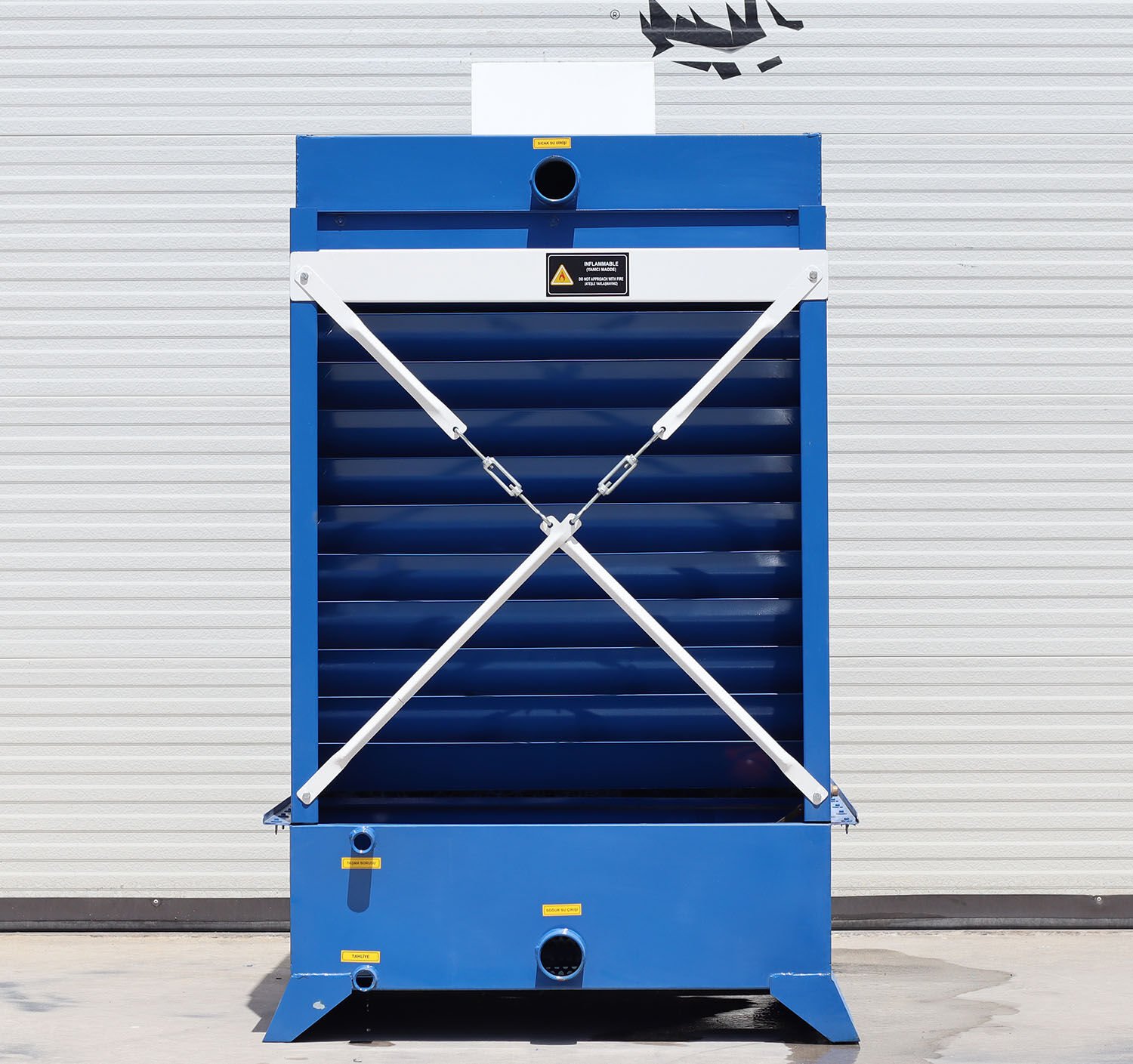

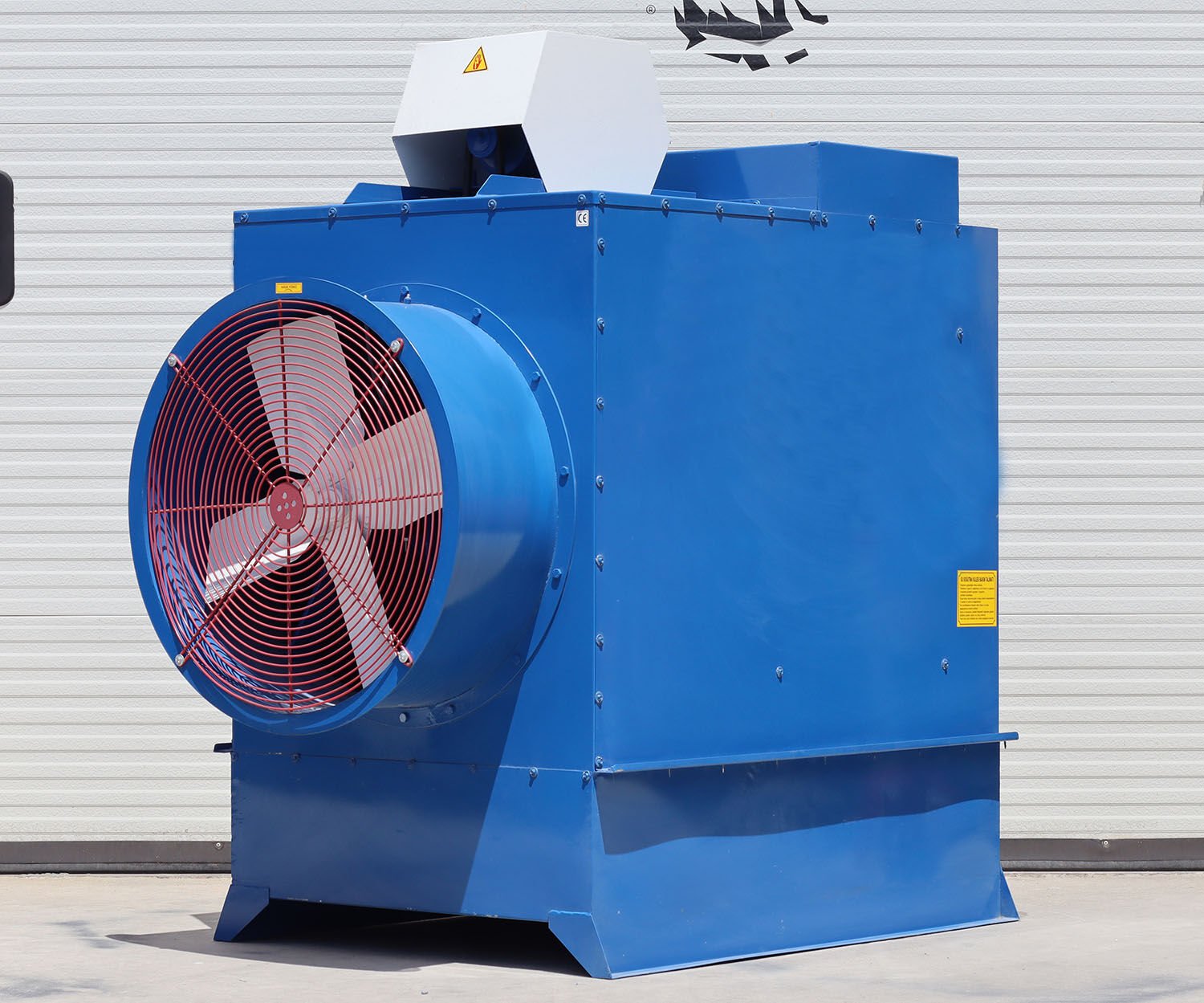

DESIGN INFORMATION Cooling Capacity 10,523 Watts Cooling Capacity 9,050 kCal/h Model FP - 21 SPECIAL ONE-PIECE Total Cooling Capacity 90,500 Kcal / h -105.23 Kw Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 18.1 m3/h Connection Dimensions Water Inlet: 2 1/2" / Water Outlet: 2 1/2" Dimensions (W) 1060mm x (L) 1815mm x (H) 2350mm Loading Weight 350 KG Operating Weight 1.35 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 1.1 KW 1500 RPM (380 Volts) Power Consumption 0.95 kW Protection Class F Motor Drive System Belt Pulley Connection Sound Level Max 80 Decibels at 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 750 mm Air Flow Rate 8.959 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.1385 m3/h Drag Loss 0.007% Water Head 36.58 t/m2.h Total Pressure Loss 4 mmss Tower Accessories Fan Guard Aerodynamically designed pitched removable fan guard Tensioners Cast Iron Rope Stretchable Motorcycle Hood, Rain Protector, Full Protective Hood. WARRANTY PERIOD: Our products have CE and ISO certificates and are guaranteed against manufacturing defects for 1 year.
