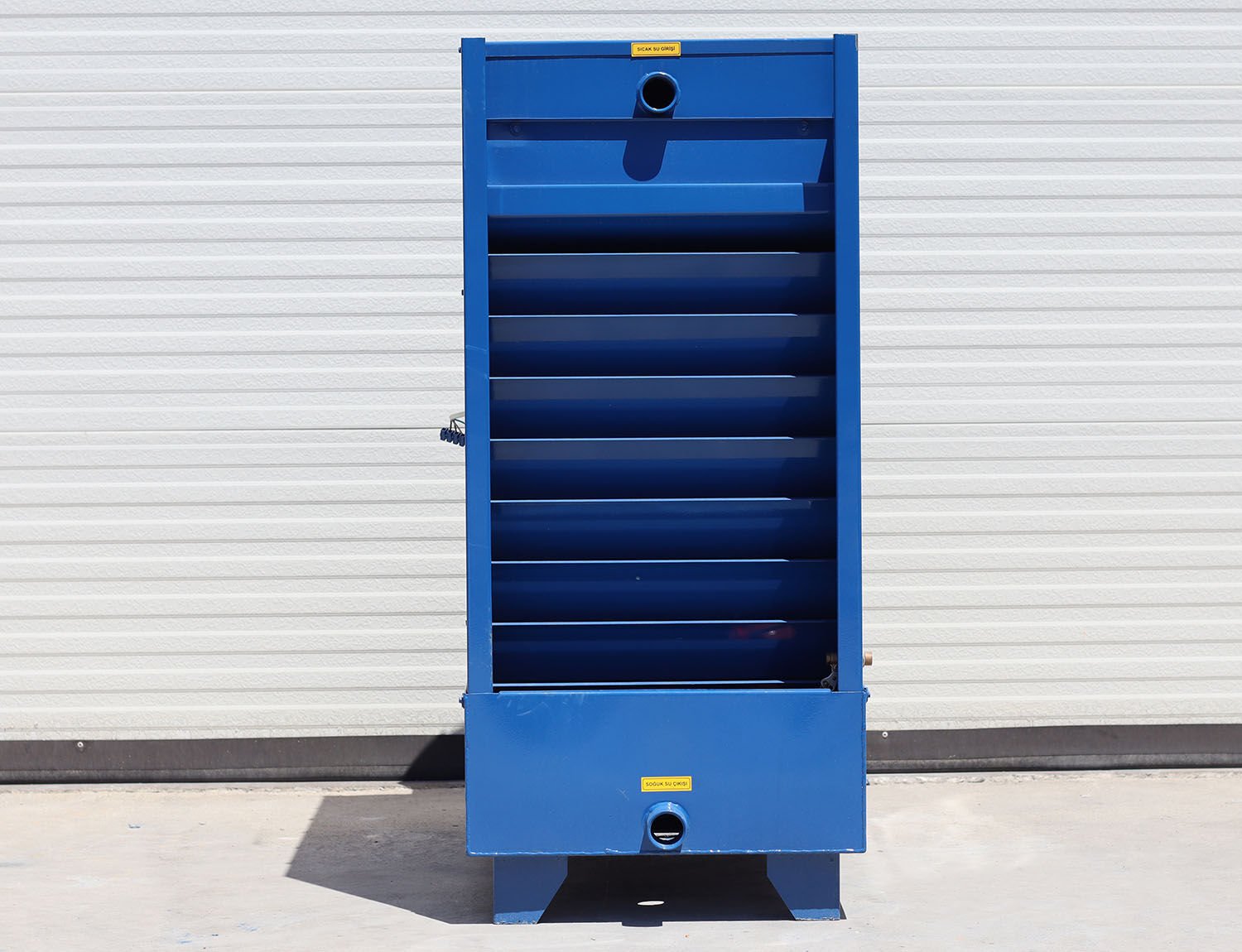

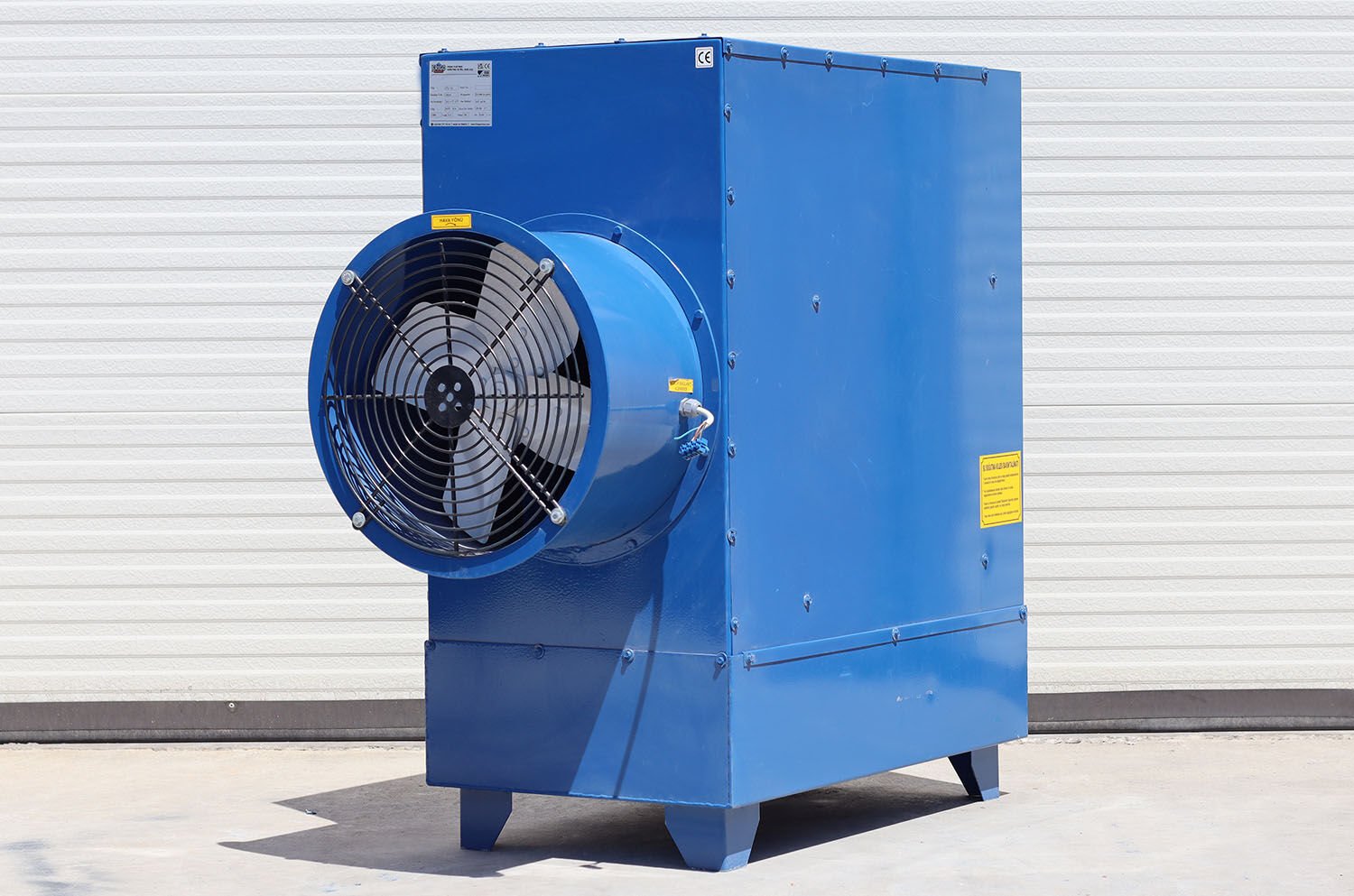

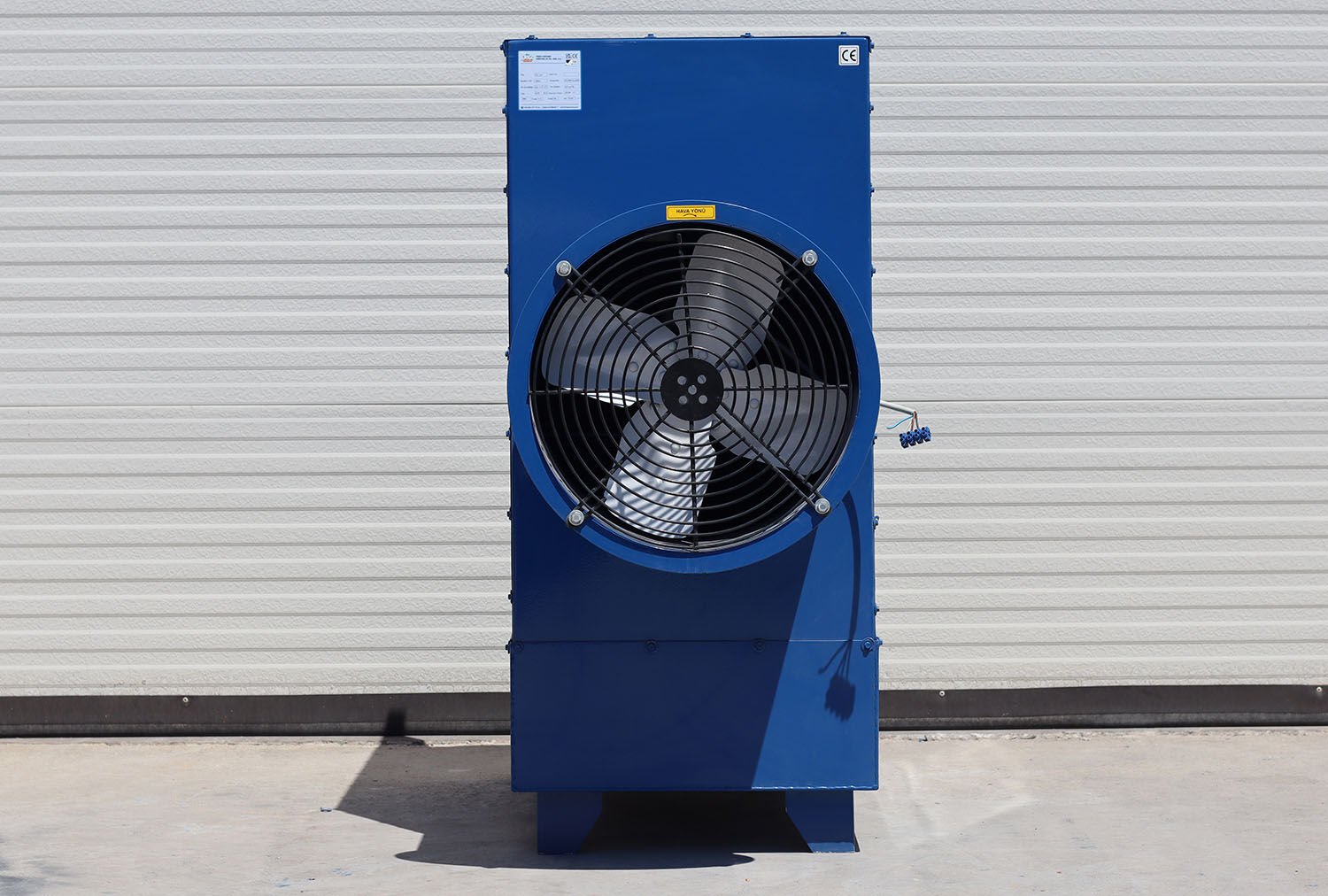

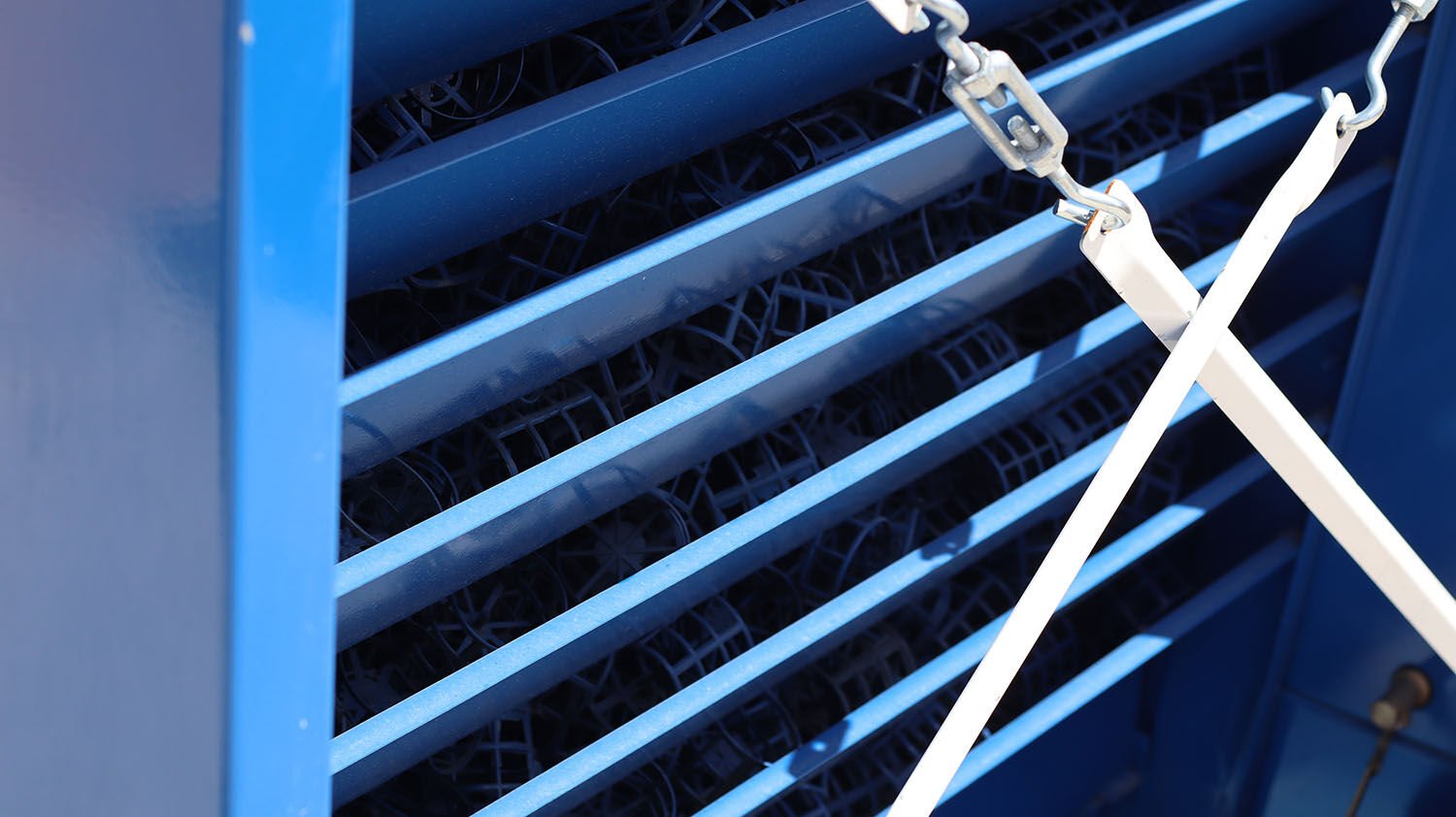

DESIGN INFORMATION Cooling Capacity 38,372 Watts Cooling Capacity 33,000 kCal/h Model FP - 15 Total Cooling Capacity 33,000 kcal/h Water Inlet/Outlet Temperature 35ºC - 30ºC Wet Bulb Temperature 25ºC Water Flow Rate to be Cooled 6.6 m3/h Connection Dimensions Water inlet: 1.1/4" Water outlet: 1.1/4" Dimensions (W) 556 mm x (L) 1250 mm x (H) 1250 mm Loading Weight 130 KG Operating Weight 0.26 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 0.25KW 1500 RPM (380 Volts) Power Consumption 0.19 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Maximum noise level from 1 meter: 80 decibels. Electrical supply: 380 V – 3 Phase – 50 Hz. Fan Information: Fan Type: Axial Fan. Blades: 4 Steel Blades. Fan Hub: Steel Body. Number of Fans: 1. Fan Diameter: Ø 450 mm. Air Flow Rate: 3.267 m3/h. Hydraulic System: Water Distribution. Hot Water Pool Interior. Removable Nozzle. Daisy Model Nozzle. Fountain Filling Material: Curler Filling Eliminator: PP Droplet Catcher. Air Velocity in Filling: 2.75 m/s. Evaporation Rate: 0.0505 m3/h. Drift Loss: 0.007%. Water Head: 23.46 t/m2.h. Total Pressure Loss: 3.5 mmss. Tower Accessories: Fan Guard: Aerodynamically designed, pitched, removable fan guard. Tensioners: Cast Rope Tensioner. Motor Cover: Rain guard, fully enclosed cover. WARRANTY PERIOD: Our Products It has CE and ISO certificates and is covered by a 1-year warranty against manufacturing defects.
