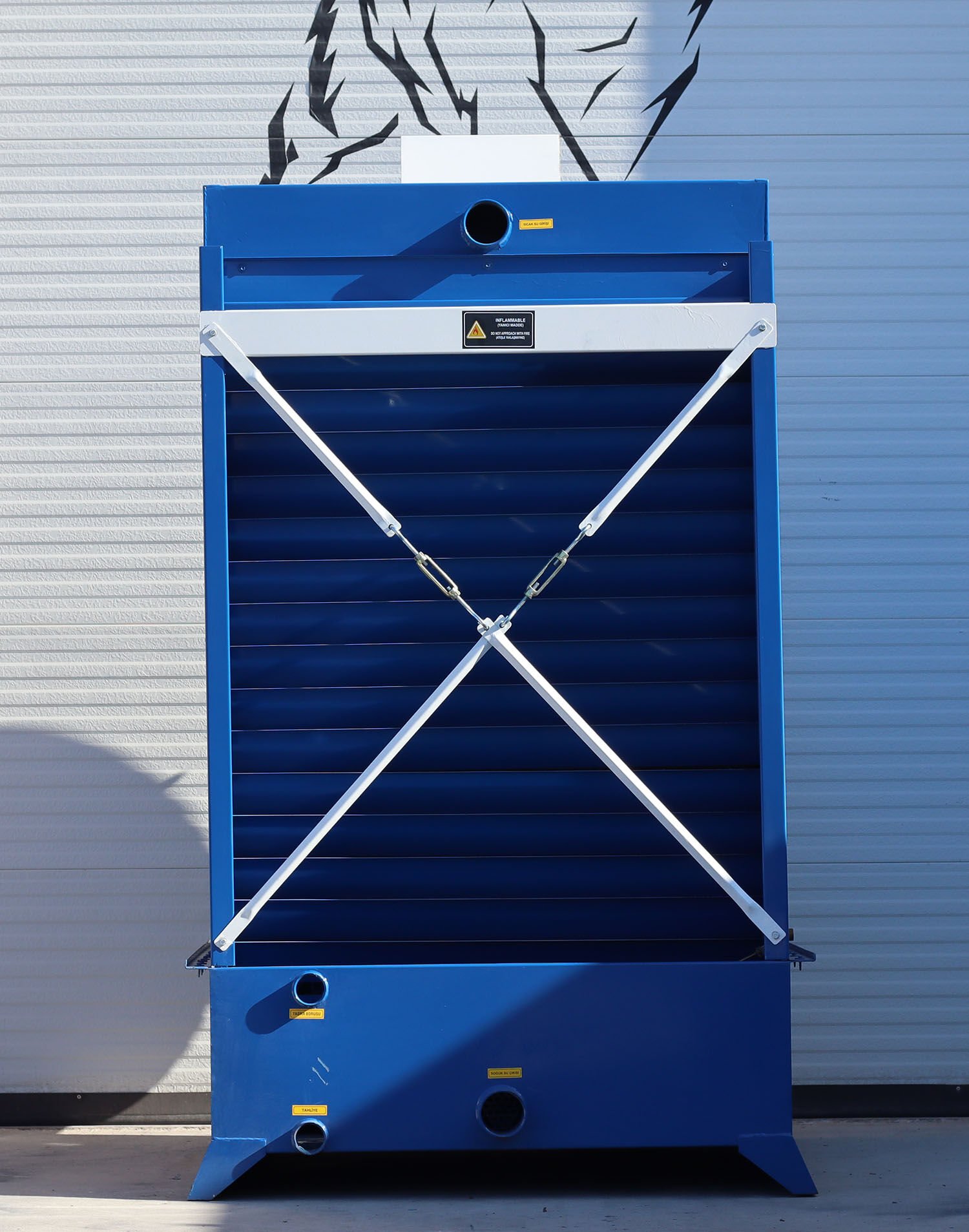

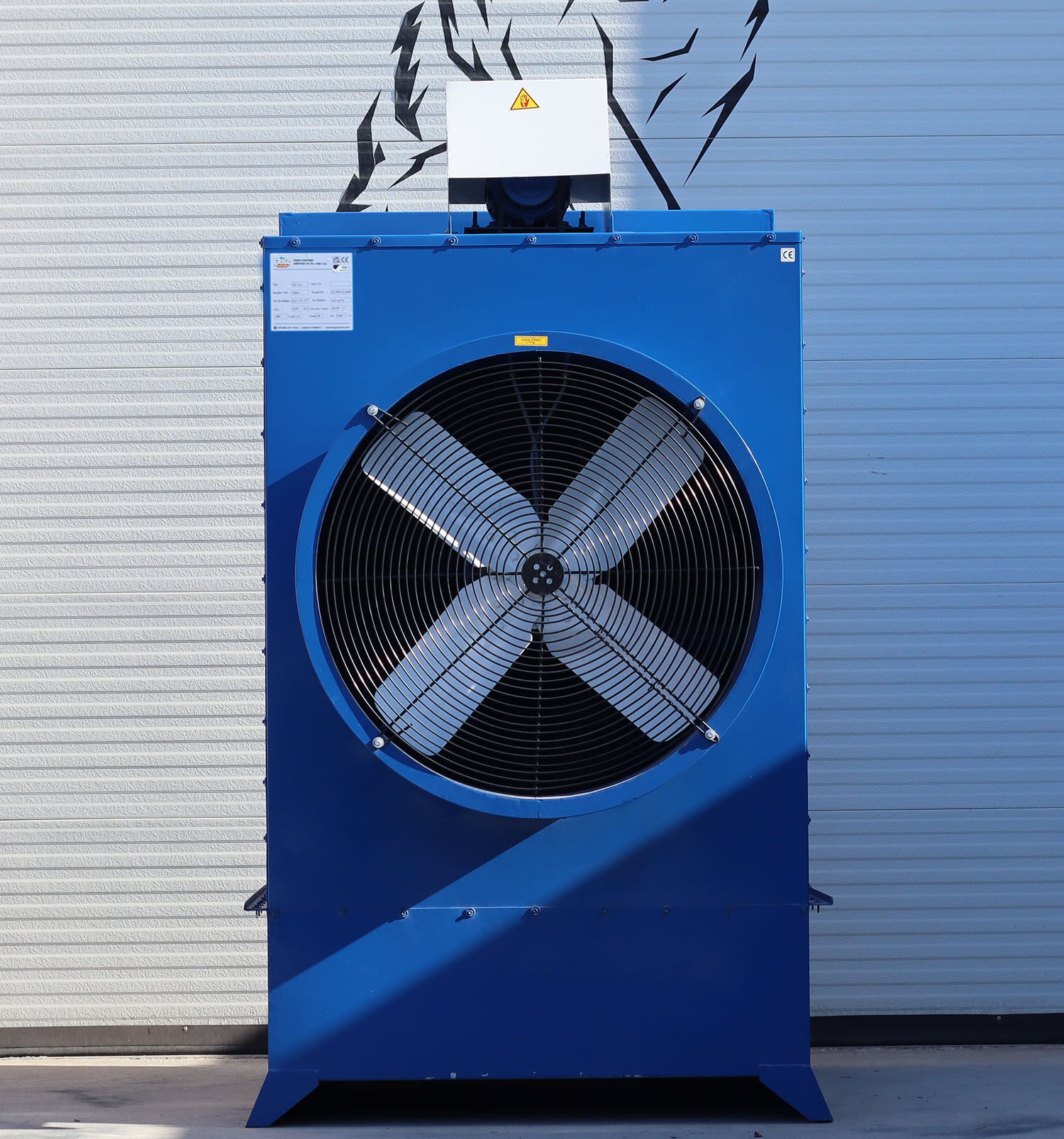

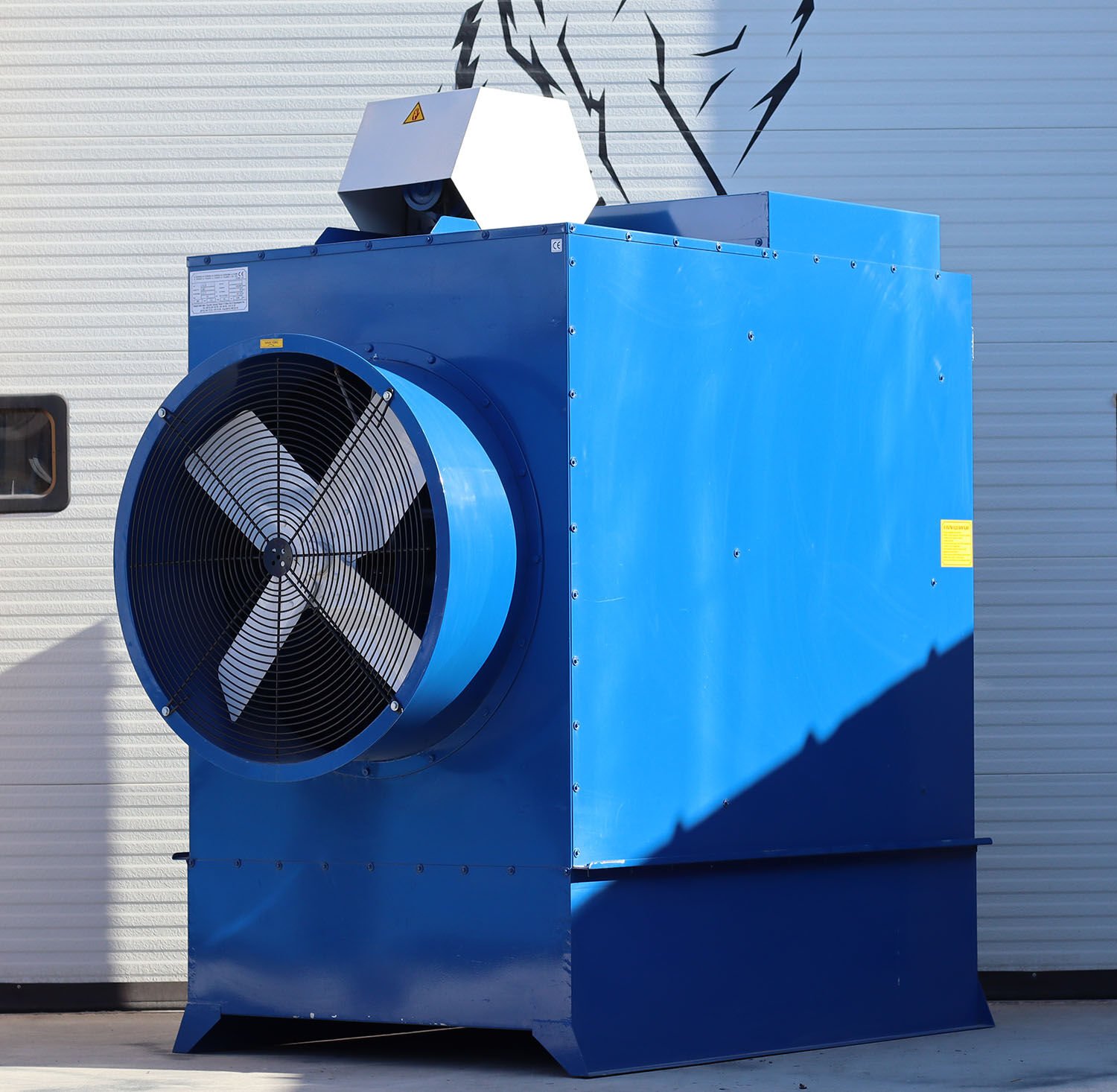

FP-15 + 500 Cross-Flow Axial Fan Water Cooling Tower

DESIGN INFORMATION Cooling Capacity 38,372 Watts Cooling Capacity 33,000 kCal/h Model FP - 15 + 500 Total Cooling Capacity 33,000 Kcal / h -38.37 Kw Water Inlet / Outlet Temperature 35 ºC - 30ºC Wet Bulb Temperature 25 ºC Water Flow Rate to be Cooled 6.6 m3/h Connection Dimensions Water inlet: 1.1/4" Water outlet: 1.1/4" Dimensions (W) 556 mm x (L) 1250 mm x (H) 1980 mm Loading Weight 150 KG Operating Weight 0.63 Kg Tower Material Used DX51 Galvanized Sheet Fan Motor Information Nominal Power 0.25KW 1500 RPM (380 Volts) Power Consumption 0.19 kW Protection Class Class F Motor Drive System Belt Pulley Connection Noise Level Max 80 Decibels from 1 Meter Electrical Supply 380 V – 3 Phase – 50 Hz Fan Information Fan Type Axial Fan Blades 4 Steel Blades Fan Hub Steel Body Number of Fans 1 Fan Diameter Ø 450 mm Air Flow Rate 3.267 m3/h Hydraulic System Water Distribution Hot Water Pool Interior Removable Nozzle Daisy Model Nozzle Sprinkler Filling Material Curler Filling Eliminator PP Droplet Catcher Air Velocity in Filling 2.75 m/s Evaporation Amount 0.0505 m3/h Drift Loss 0.007% Water Head 23.46 t/m2.h Total Pressure Loss 3.5 mmss Tower Accessories Fan Guard Aerodynamic pitched removable type fan guard Tensioners Cast Rope Tensioner Motor Cover Rain guard, full Protective cap WARRANTY PERIOD Our products have CE and ISO certificates and are covered against manufacturing defects for 1 year.
