Pizza ve ekmek fırınları için taştabanlı fırın kontrol kartları

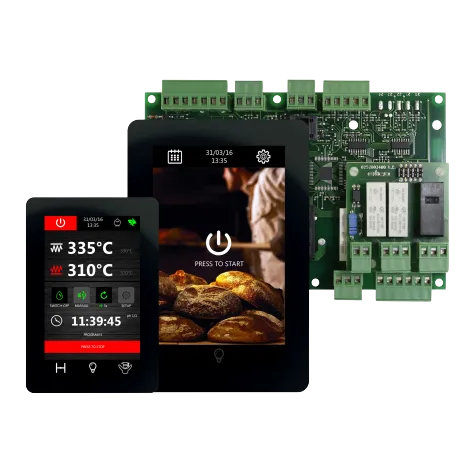

Vcolor 318/328 is a range of controllers with elegant design for the management of different typologies of "top-floor" electric ovens.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
These controllers are suitable for different types of electric ovens due to the independent management of the power and the temperature at the top and on the floor of the oven. The model Vcolor 318 manages top-floor heaters by electro-mechanical relays, while the model Vcolor 328 has 2 12VDC outputs for managing external SSRs.
They have the full steam management (generation, injection and venting), both in automatic and manual mode, the "programmed weekly switch on”, "cooking timer” and "programs” functions and energy saving strategies.
Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.
For more details, please visit the "Remote management and monitoring products/systems” section of our website.
Avantajlar ve ana özellikler
* Independent regulation of the power or temperature of the
top and floor heaters
* Automatic or manual steam management (generation,
injection and extraction)
* Models with "Programmed weekly switch on”, "cooking timer”
and "programs” function
* 5” or 7” capacitive TFT touch-screen graphic display in glass
* Flush-fit installation
* USB communication port for common USB flash drive
* Models with management of external SSRs
